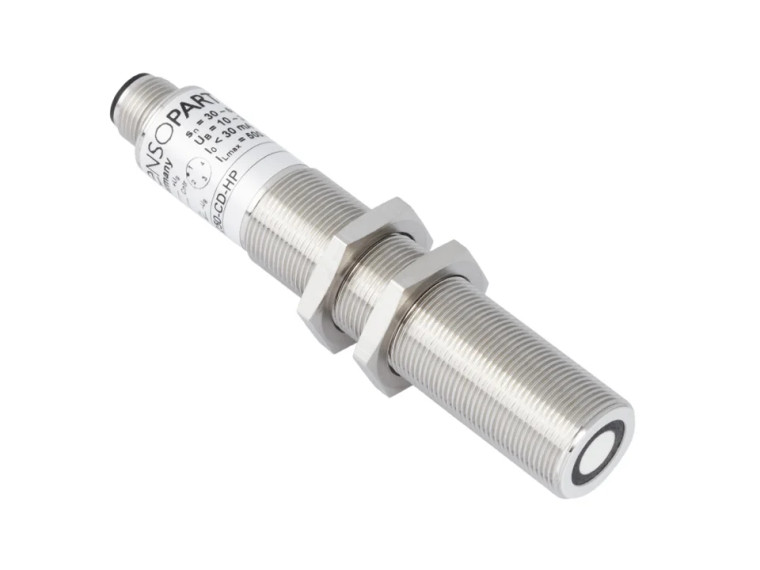

Sensopart Ultrasonic Sensor, Barrel Type, Metal Housing M18, Analogue Output 4-20 mA (Model: 690-10103)
Sensopart
$477.27
Encased in a durable metal housing with an M18 barrel type design, the Sensopart Ultrasonic Sensor, model 690-10103, is engineered for challenging industrial environments. It offers an analogue output range of 4 to 20 mA, ensuring precise and consistent measurements. This high-performance sensor is perfect for detecting objects and measuring distances, making it an essential component for automation systems. Its versatility and reliability enhance operational efficiency, making it a valuable tool for various applications.
- Response time [ms]:
- 30
- Output:
- Analog (current)
- Ultrasonic frequency [kHz]:
- 390
- Series:
- M18
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 300
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.4
- Repeatability [mm]:
- 0.05
- Temperature range [°C]:
- -25 ... +70
- Temperature drift [%]:
- ± 1.5 %
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
