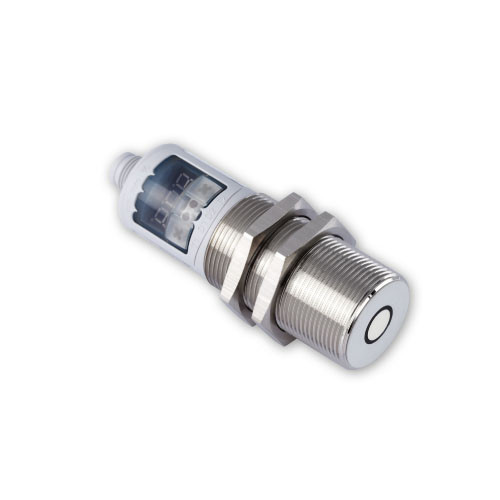

SensoPart UMT 30-1300-2PSD-L5 Ultrasonic sensor with switching output
Sensopart
The SensoPart UMT 30-1300-2PSD-L5 Ultrasonic Sensor is designed for precision and reliability in various industrial applications. With a working distance range of 200 to 1300 mm, this sensor is ideal for detecting objects within a wide range. It features a robust M30 housing and offers two switching outputs with PNP configuration, allowing for both normally open (N.O.) and normally closed (N.C.) operations. The sensor operates at an ultrasonic frequency of 200 kHz, ensuring accurate detection with a resolution of 0.4 mm and repeatability of ± 0.15%.
The UMT 30-1300-2PSD-L5 is equipped with a plug M12, 5-pin connection type, making it easy to integrate into existing systems. It boasts an enclosure rating of IP67, providing excellent protection against dust and water ingress, suitable for harsh environments. The sensor operates efficiently within a temperature range of -25 to +70°C, ensuring consistent performance in varying conditions.
With a switching frequency of 8 Hz and a response time of 92 ms, this sensor is designed for fast and reliable object detection. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links.
- Switching frequency [Hz]:
- 8
- Response time [ms]:
- 92
- Output:
- Switching (PNP)
- Ultrasonic frequency [kHz]:
- 200
- Series:
- M30
- Working distance min. [mm]:
- 200
- Working distance max. [mm]:
- 1300
- Amount of swithing outputs:
- 2
- Resolution [mm]:
- 0.4
- Repeatability [mm]:
- ± 0.15%
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Plug M12, 5-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
