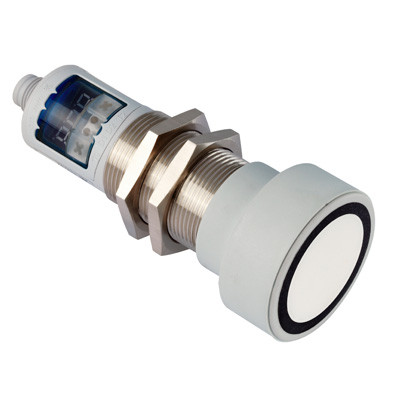

SensoPart UMT 30-3400-PSD-L5 Ultrasonic sensor with switching output
Sensopart
The SensoPart UMT 30-3400-PSD-L5 Ultrasonic Sensor is designed for precision and reliability in a variety of industrial applications. With a working distance range of 350 to 3400 mm, this sensor is ideal for detecting objects at varying distances. It features a robust M30 housing and offers a PNP switching output with both normally open (N.O.) and normally closed (N.C.) configurations. The sensor operates at an ultrasonic frequency of 120 kHz and has a switching frequency of 3 Hz, ensuring accurate and timely responses with a response time of 180 ms.
This sensor is equipped with a plug M12, 5-pin connection type, making it easy to integrate into existing systems. It boasts an enclosure rating of IP67, providing excellent protection against dust and water ingress, making it suitable for harsh environments. The sensor's resolution is 0.4 mm, with a repeatability of ±0.15%, ensuring consistent performance.
The SensoPart UMT 30-3400-PSD-L5 operates efficiently within a temperature range of -25°C to +70°C, making it versatile for various conditions. For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links. This product is also available for quote requests, ensuring you get the best solution tailored to your needs.
- Switching frequency [Hz]:
- 3
- Response time [ms]:
- 180
- Output:
- Switching (PNP)
- Ultrasonic frequency [kHz]:
- 120
- Series:
- M30
- Working distance min. [mm]:
- 350
- Working distance max. [mm]:
- 3400
- Amount of swithing outputs:
- 2
- Resolution [mm]:
- 0.4
- Repeatability [mm]:
- ± 0.15%
- Temperature range [°C]:
- -25 ... +70
- Connection type:
- Plug M12, 5-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
- QN-QUOTE-REQUEST:
- true
