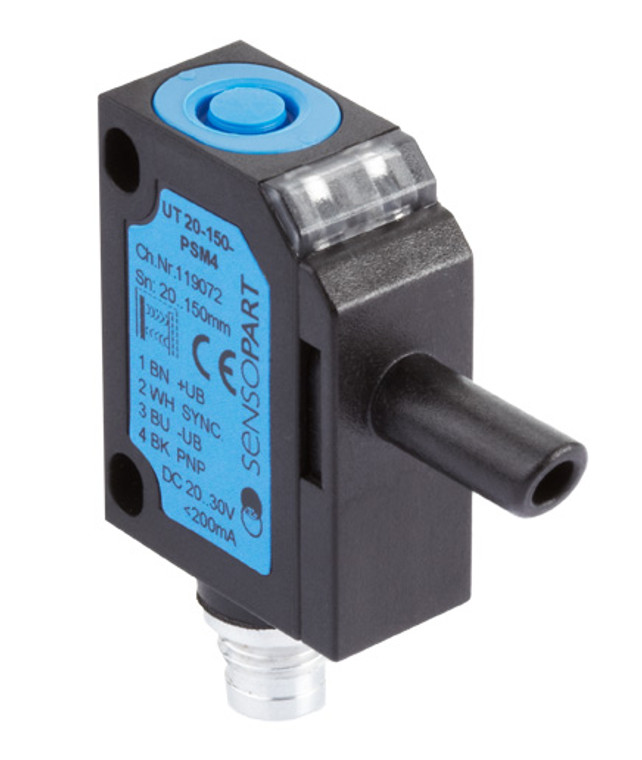

SensoPart UT 20-S150-PSM4 Ultrasonic sensor with soundpipe and switching output
Sensopart
The SensoPart UT 20-S150-PSM4 Ultrasonic Sensor is designed for precision and reliability in various industrial applications. Featuring a soundpipe and a switching output, this sensor offers a working distance range from 20 mm to 140 mm, ensuring accurate detection and measurement. With a switching frequency of 25 Hz and a response time of 24 ms, it provides quick and efficient performance. The sensor operates at an ultrasonic frequency of 380 kHz and includes a single PNP switching output. Its compact design, part of the UT20 series, measures 32 x 21.6 x 12 mm, making it suitable for space-constrained environments.
The sensor boasts a high resolution of 0.2 mm and repeatability of ± 0.15%, ensuring consistent results. It operates effectively within a temperature range of -25°C to +70°C, with minimal temperature drift of ? 2%. The robust construction is rated IP67, providing excellent protection against dust and water ingress. The sensor connects via a durable metal plug M8, 4-pin, ensuring secure and reliable connectivity.
For further technical details, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links. This product is ideal for those seeking a dependable ultrasonic sensor with advanced features and easy integration into existing systems.
- Switching frequency [Hz]:
- 25
- Response time [ms]:
- 24
- Output:
- Switching (PNP)
- Ultrasonic frequency [kHz]:
- 380
- Series:
- UT20 (32 x 21,6 x 12 mm)
- Working distance min. [mm]:
- 20
- Working distance max. [mm]:
- 140
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.2
- Repeatability [mm]:
- ± 0.15%
- Temperature range [°C]:
- -25 ... +70
- Temperature drift [%]:
- ? 2 %
- Connection type:
- Metal plug M8, 4-pin
- Enclosure rating:
- IP 67
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
