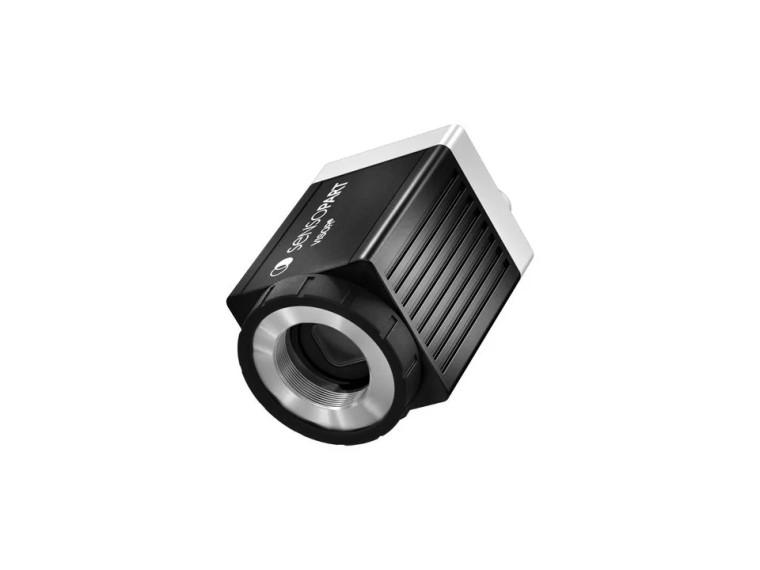

SensoPart V20C-RO-P3-C-2 VISOR® V20 Robotic Color, Professional, 255 jobs each with 255 detectors, C-Mount, LAN interface
Sensopart
The SensoPart V20C-RO-P3-C-2 VISOR® V20 Robotic Color, Professional is a high-performance vision sensor designed for advanced robotic applications. Equipped with a color image chip and HDV2 resolution, it offers a pixel array of 1440 x 1080, ensuring precise and detailed image capture. The sensor utilizes CMOS imaging chip technology and features a 1/2.9" sensor size with a pixel size of 3.45 µm, providing exceptional image clarity. The C-Mount design allows for customizable field of view, dependent on the selected objective lens, making it versatile for various applications. The LAN interface ensures seamless connectivity and integration into existing systems. With the capability to handle 255 jobs, each with 255 detectors, this professional-grade sensor is ideal for complex and demanding tasks. For more detailed specifications, please refer to the datasheet.
- Image chip type:
- Color
- Resolution:
- HDV2
- Number of pixels (H x V) [px]:
- 1440 x 1080
- Imaging chip technology:
- CMOS
- Sensor size ["]:
- 1/2.9
- Pixel size [µm]:
- 3.45
- Min. field of view (X x Y) [mm]:
- Abhängig vom gewählten Objektiv
- Focus drive:
- Dependent on the objective lens selected
- Field of view type:
- C-Mount (field-of-view data depend on the lens used)
- Datasheet:
- View
