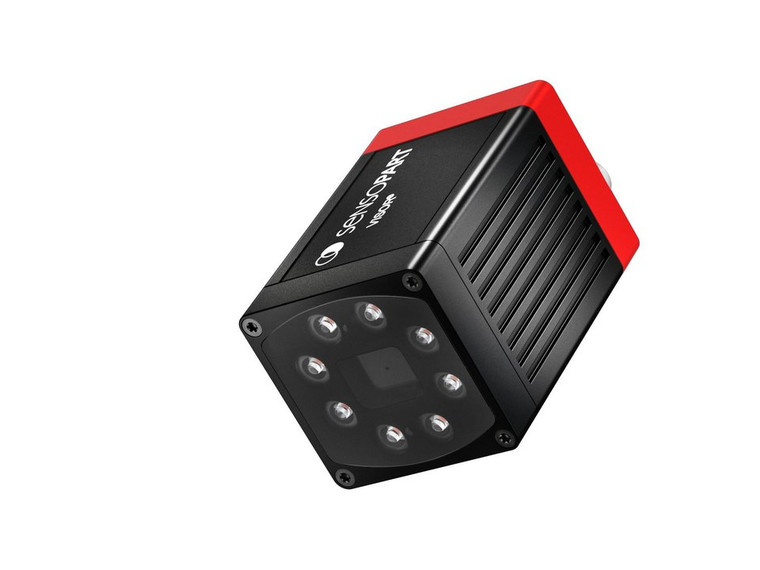

SensoPart V50-ALL-P4-U-M-M3-L VISOR XE V50 Allround Professional, UV illumination, field of view medium, motorized focus, LAN interface, target laser
Sensopart
The SensoPart VISOR XE V50 Allround Professional is a versatile and advanced vision sensor designed for a wide range of industrial applications. Equipped with UV illumination, it ensures precise detection and inspection even in challenging lighting conditions. The medium field of view allows for optimal coverage, while the motorized focus provides flexibility and ease of use in dynamic environments. With a LAN interface, this sensor offers seamless integration into existing network systems, enhancing connectivity and data management. The inclusion of a target laser ensures accurate alignment and positioning, making it an ideal choice for applications requiring high precision and reliability. Whether used in quality control, assembly verification, or object recognition, the VISOR XE V50 delivers exceptional performance and adaptability.
- Image chip type:
- Monochrome
- Light source:
- LED
- Light color:
- Ultraviolet
- Wavelength [nm]:
- 365
- LED risk category [RG]:
- 1
- Explanation of risk category:
- Acc. to EN 62471
- Resolution:
- QSXGA
- Number of pixels (H x V) [px]:
- 2560 x 1936
- Imaging chip technology:
- CMOS
- Sensor size ["]:
- 1/1.8
- Pixel size [µm]:
- 2.80
- Field of view type:
- Medium
- Focal length [mm]:
- 20.0
- Opening angle [°]:
- 10.0
- Min. field of view (X x Y) [mm]:
- 32 x 24
- Aperture number:
- 2.8
- Depth of field:
- Standard
- Focus drive:
- Dependent on the objective lens selected
- Target laser:
- Laser red (655 nm)
- Laser class:
- 1 (IEC 60825-1)
