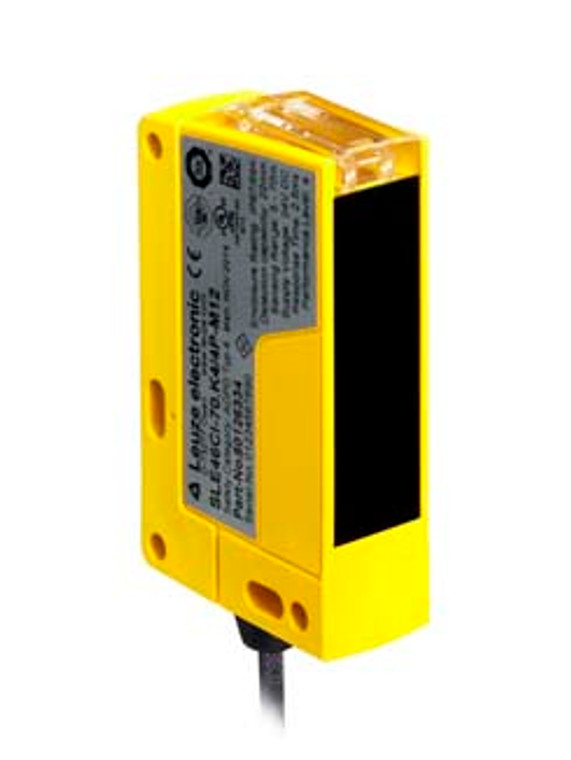

Leuze SLE46CI-40.K4/4P Single light beam safety device receiver

Leuze SLE46CI-40.K4/4P Single light beam safety device receiver

Leuze
SKU:
SLE46CI-40.K4/4P
$261.54
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
SLE46CI-40.K4/4P Single beam safety device receiver
Additional Information
Series:
46C
Functions:
Alignment indicator,Diagnostic output
Type:
4, IEC/EN 61496, in combination with MSI-TRMB safety relay, In combination with MSI-TRMB safety relay
SIL:
3, IEC 61508, in combination with MSI-TRMB safety relay, In combination with MSI-TRMB safety relay
SILCL:
3, IEC/EN 62061, in combination with MSI-TRMB safety relay, In combination with MSI-TRMB safety relay
Performance Level (PL):
e, EN ISO 13849-1:2008, In combination with MSI-TRMB safety relay
MTTFd:
900 years, EN ISO 13849-1
Mission time:
20 years, EN ISO 13849-1
Category:
4, EN ISO 13849:2008, In combination with MSI-TRMB safety relay
Protective circuit:
Polarity reversal protection,Short circuit protected
Supply voltage UB:
24 V, DC, -20 ... 20 %, Incl. residual ripple
Residual ripple:
10 %, From UB
Open-circuit current:
0 ... 15 mA
Number of digital switching outputs:
2 Piece(s)
Switching voltage high, min.:
22 V
Switching voltage low, max.:
2 V
Switching voltage, type.:
23 V
Voltage type:
DC
Switching current, max.:
100 mA
Switching voltage:
high: ?(UB-2V),low: ? 2 V
Switching principle:
Dark switching
Function:
Diagnostic output
Switching principle:
Light switching
Function:
Switching output
Switching frequency:
250 Hz
Response time:
2.5 ms
Readiness delay:
300 ms
Number of connections:
1 Piece(s)
Function:
Signal OUT,Voltage supply
Type of connection:
Cable
Cable length:
2,000 mm
Sheathing material:
PUR
Number of conductors:
4 -wire
Wire cross section:
0.21 mm²
Design:
Cubic
Dimension (W x H x L):
20.5 mm x 76.3 mm x 44 mm
Housing material:
Plastic
Plastic housing:
PC-PBT
Lens cover material:
Plastic / PMMA
Net weight:
100 g
Housing color:
Yellow
Type of fastening:
Through-hole mounting
Compatibility of materials:
ECOLAB
Type of display:
LED
Number of LEDs:
2 Piece(s)
Ambient temperature, operation:
-30 ... 60 °C
Ambient temperature, storage:
-30 ... 70 °C
Degree of protection:
IP 67,IP 69K
Protection class:
III, Rating voltage 50?V
Approvals:
c TÜV NRTL US,c UL US
Standards applied:
IEC 60947-5-2, IEC/EN 61496
Customs tariff number:
85365019
ECLASS 5.1.4:
27272701
ECLASS 8.0:
27272701
ECLASS 9.0:
27272701
ECLASS 10.0:
27272701
ECLASS 11.0:
27272701
ECLASS 12.0:
27272701
ECLASS 13.0:
27272701
ECLASS 14.0:
27272701
ECLASS 15.0:
27272701
ETIM 5.0:
EC001831
ETIM 6.0:
EC001831
ETIM 7.0:
EC001831
ETIM 8.0:
EC001831
ETIM 9.0:
EC001831
ETIM 10.0:
EC001831
