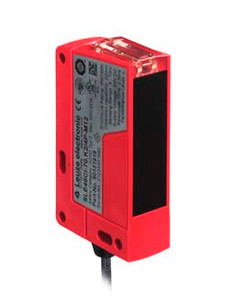

Leuze SLE46CI-70.K2/4P-M12 Single light beam safety device receiver
SLE46CI-70.K2/4P-M12 Single beam safety device receiver
- Series:
- 46C
- Functions:
- Alignment indicator,Diagnostic output
- Type:
- 2, IEC/EN 61496, in combination with a suitable test monitoring unit, e.g. MSI-TR1B, In combination with a suitable test monitoring unit, e.g. MSI-TR1B
- SIL:
- 1, IEC 61508, in combination with a suitable test monitoring unit, e.g. MSI-TR1B, In combination with a suitable test monitoring unit, e.g. MSI-TR1B
- SILCL:
- 1, IEC/EN 62061, in combination with a suitable test monitoring unit, e.g. MSI-TR1B, In combination with a suitable test monitoring unit, e.g. MSI-TR1B
- Performance Level (PL):
- c, EN ISO 13849-1:2008, In combination with a suitable test monitoring unit, e.g. MSI-TR1B
- MTTFd:
- 400 years, EN ISO 13849-1
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 2, EN ISO 13849:2008, In combination with a suitable test monitoring unit, e.g. MSI-TR1B
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %, Incl. residual ripple
- Residual ripple:
- 10 %, From UB
- Open-circuit current:
- 0 ... 15 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching voltage high, min.:
- 22 V
- Switching voltage low, max.:
- 2 V
- Switching voltage, type.:
- 23 V
- Voltage type:
- DC
- Switching current, max.:
- 100 mA
- Switching voltage:
- high: ?(UB-2V),low: ? 2 V
- Switching principle:
- Dark switching
- Function:
- Diagnostic output
- Switching principle:
- Light switching
- Function:
- Switching output
- Switching frequency:
- 250 Hz
- Response time:
- 2.5 ms
- Readiness delay:
- 300 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Plastic
- No. of pins:
- 4 -pin
- Design:
- Cubic
- Dimension (W x H x L):
- 20.5 mm x 76.3 mm x 44 mm
- Housing material:
- Plastic
- Plastic housing:
- PC-PBT
- Lens cover material:
- Plastic / PMMA
- Net weight:
- 50 g
- Housing color:
- Red
- Type of fastening:
- Through-hole mounting
- Compatibility of materials:
- ECOLAB
- Type of display:
- LED
- Number of LEDs:
- 2 Piece(s)
- Ambient temperature, operation:
- -30 ... 60 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- III, Rating voltage 50?V
- Approvals:
- TÜV Süd,c TÜV NRTL US,c UL US
- Standards applied:
- IEC 60947-5-2, IEC/EN 61496
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272701
- ECLASS 8.0:
- 27272701
- ECLASS 9.0:
- 27272701
- ECLASS 10.0:
- 27272701
- ECLASS 11.0:
- 27272701
- ECLASS 12.0:
- 27272701
- ECLASS 13.0:
- 27272701
- ECLASS 14.0:
- 27272701
- ECLASS 15.0:
- 27272701
- ETIM 5.0:
- EC001831
- ETIM 6.0:
- EC001831
- ETIM 7.0:
- EC001831
- ETIM 8.0:
- EC001831
- ETIM 9.0:
- EC001831
- ETIM 10.0:
- EC001831
- Datasheet:
- View
- Declaration of Conformity:
- View
