SMC 10-CDG1RN32-75Z-M9PW | 10-/11-CG1R-Z Series Clean Room Air Cylinder Direct Mount 32mm Bore 75mm Stroke With Auto-Switch
SMC
$100.80

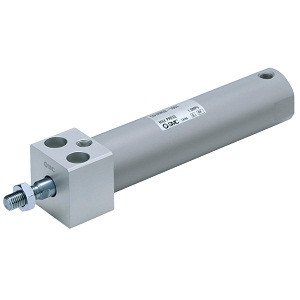

The SMC 10-CDG1RN32-75Z-M9PW is a clean room specification direct mount type air cylinder from the 10-/11-CG1R-Z series, featuring a 32mm bore, 75mm stroke, and integrated M9PW auto-switch. The "R" in CG1R designates the direct mount configuration, which eliminates the need for separate mounting brackets by providing integrated mounting features directly on the cylinder body for reduced installation complexity and more compact equipment design.
What is the advantage of the CG1R direct mount in clean room equipment? Direct mount cylinders bolt directly to the machine structure without intermediate brackets, reducing the total number of components, fasteners, and potential particle-generating joint interfaces in the clean room equipment. Fewer components also means fewer assembly steps during equipment builds and faster cylinder replacement during maintenance, minimizing clean room downtime.
The M9PW auto-switch provides solid-state magnetic position detection through the cylinder wall, delivering reliable piston position signals to the equipment controller for automated cycle sequencing. The 32mm bore provides medium actuation force suitable for a wide range of clean room workpiece handling, clamping, and positioning tasks. The "N" rod end and 75mm stroke complete the mechanical configuration.
The "10-" clean series ensures fluorine grease, particle generation grade 1 compliance, and anti-static double packaging. RoHS compliant and CE-marked for integration into clean room pneumatic systems.
- Series:
- 10-CG1R-Z (Clean Room)
- Cylinder Type:
- Round Body (Direct Mount)
- Action:
- Double Acting
- Rod Type:
- Single Rod
- Bore:
- 32mm
- Stroke:
- 75mm
- Auto-Switch:
- M9PW (Solid-State)
- Mounting:
- Direct Mount
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS, CE
