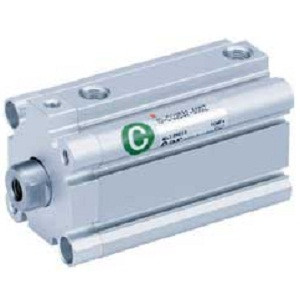

SMC 10-CQ2B63-50DZ | Clean Room Compact Cylinder CQ2 Series 63mm Bore 50mm Stroke Double-Acting Auto-Switch Ready High Force
SMC
$106.50
The SMC 10-CQ2B63-50DZ is a clean room specification compact cylinder from the CQ2 series with a 63mm bore and 50mm stroke. Part number decoded: CQ2 = compact square-body cylinder, B = basic mount, 63 = bore mm, 50 = stroke mm, D = double-acting, Z = auto-switch groove. The 63mm bore is one of the larger options in the CQ2 compact family, generating approximately 1,870N at 0.6 MPa serious clamping and pressing force from a compact square-body envelope.
Why choose a 63mm bore compact over a standard round-body cylinder? The CQ2B63 delivers equivalent force to a 63mm round-body cylinder while maintaining the CQ2's reduced mounting height. In clean room equipment where vertical space above the actuator is constrained by enclosure panels, cable trays, or adjacent mechanisms, the compact square body provides the same force output in a significantly shorter stack height. The 50mm stroke handles heavy clamping, die pressing, seal compression, and high-force insertion operations requiring short but powerful actuation.
The CQ2B63-50DZ sits between the CQ2B50 (~1,178N) and the CQ2B80 (~3,016N) in force output. For longer strokes at 63mm bore, see CQ2B63-75DZ and CQ2B63-100DZ. For cushioned operation at this bore, specify CDQ2B63-50DCZ. For the next force step up within the CQ2 compact series, the CQ2B80 delivers 80mm bore force. Compatible with SMC D-A auto switches and AS speed controllers. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-CQ2-Z (Clean Room)
- Cylinder Type:
- Compact (Square Body)
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 63mm
- Stroke:
- 50mm
- Mounting:
- Basic (B)
- Piston:
- Magnetic
- Auto-Switch:
- Compatible (Z groove)
- Force at 0.6 MPa:
- ~1870N
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
