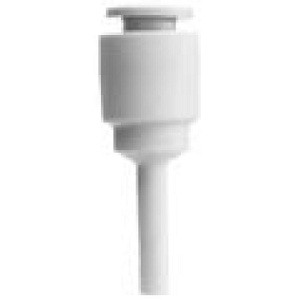

SMC 10-KGR06-12 | Clean Room Stainless Steel One-Touch Fitting KGR Series Plug-In Reducer 6mm to 12mm Tube Pack of 2
SMC
$18.50
The SMC 10-KGR06-12 is a clean room specification stainless steel one-touch plug-in reducer from the KGR series, sold in a pack of 2. Part number decoded: KGR = stainless steel one-touch plug-in reducer, 06 = 6mm smaller tube OD, 12 = 12mm larger tube OD. The plug-in reducer connects two different tube sizes inline without thread adapters, enabling tube diameter transitions in clean room pneumatic circuits.
When is a plug-in reducer needed? Clean room pneumatic systems often use different tube sizes for trunk lines versus branch lines larger 12mm tubes for main air supply runs that require high flow, transitioning to 6mm tubes for individual actuator connections where lower flow is sufficient and smaller tubes save space. The KGR06-12 provides this transition with a simple push-in connection on both ends: the 12mm tube pushes into one side, the 6mm tube into the other. No wrenches, thread sealant, or tools required.
Stainless steel (SUS316) construction eliminates particle generation from plating degradation, a common issue with nickel-plated brass reducers in clean room environments. For the reverse reduction (12mm to 6mm in a different flow direction), the fitting is bidirectional. For other size combinations, the KGR series covers transitions between 4mm, 6mm, 8mm, 10mm, and 12mm tube sizes. For same-size straight unions, the KGH series provides stainless tube-to-tube connections. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-KGR (Clean Room)
- Product Type:
- Plug-In Reducer
- Fitting Style:
- One-Touch Push-In
- Material:
- Stainless Steel (SUS316)
- Smaller Tube OD:
- 6mm
- Larger Tube OD:
- 12mm
- Pack Quantity:
- 2
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
