SMC 10-SS5V1-10FD1-10B-C4 | Clean Room SV1000 Valve Manifold 10-Station D-Sub Connector Tie-Rod Base 1/4" Port
SMC
$331.00

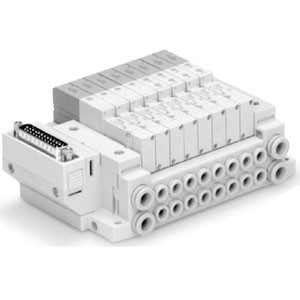

The SMC 10-SS5V1-10FD1-10B-C4 is a clean room specification solenoid valve manifold from the SV1000 series with D-sub connector and 10 valve stations. Part number decoded: SS5V1 = SV1000 series manifold assembly, 10FD1 = D-sub connector, 10B = 10-station manifold with B-type port arrangement, C4 = 1/4" port size. The 10-station manifold is the high-density configuration, controlling up to 10 pneumatic actuators from a single manifold assembly with one D-sub electrical connection.
A 10-station manifold is common in clean room equipment with complex pneumatic sequences semiconductor wafer handling systems, multi-axis pick-and-place machines, and automated test equipment where 10 or more cylinders, grippers, and gates require coordinated solenoid valve control. The D-sub connector routes all 10 valve signals through a single multi-pin cable, eliminating the wiring complexity of 10 individual valve connectors. The tie-rod base enables individual valve replacement without removing the entire manifold from the machine.
The SS5V1-10FD1-10B-C4 is the maximum station count commonly available in the SV1000 D-sub manifold range. For fewer stations, 05B, 06B, and 08B options reduce the manifold footprint. For 10 stations with larger ports, specify the N3 (3/8") or N7 (1/2") port options. For higher flow per station, the SS5V2 (SV2000) provides larger valve bodies. For serial bus communication, the SS5V1-W series integrates EX260/EX600 fieldbus connectivity. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SS5V1/SV1000 (Clean Room)
- Product Type:
- Solenoid Valve Manifold
- Stations:
- 10
- Electrical:
- D-Sub Connector (10FD1)
- Base Type:
- Tie-Rod
- Port Size:
- 1/4" (C4)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
