SMC 10-SS5V2-10FD1-07U-C6-D0 | Clean Room SV2000 Valve Manifold 7-Station D-Sub Connector Tie-Rod Base 3/8" Port DIN Rail Mount
SMC
$340.95

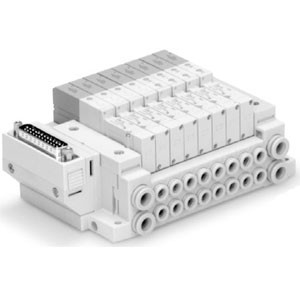

The SMC 10-SS5V2-10FD1-07U-C6-D0 is a clean room specification solenoid valve manifold from the SV2000 series with D-sub connector and 7 valve stations. Part number decoded: SS5V2 = SV2000 series manifold assembly, 10FD1 = D-sub connector, 07U = 7-station manifold with U-type port arrangement, C6 = 3/8" port size, D0 = DIN rail mount. The SV2000 is one step up from the SV1000 in valve body size, providing higher flow capacity per station.
Why choose SV2000 over SV1000? The SV2000 series uses a larger valve body with increased Cv (flow coefficient), enabling faster actuator cycling and supporting larger bore cylinders that demand higher airflow. The C6 (3/8") ports complement the larger valve body, maintaining flow capacity from supply to output without bottlenecking at the port connections. The 7-station U-type port arrangement provides a specific output port configuration optimized for the equipment's pneumatic circuit layout. DIN rail mounting (D0) enables standardized installation.
The D-sub connector routes all 7 valve signals through a single cable for simplified wiring. For more stations, SS5V2 manifolds are available in 8, 10, and larger configurations. For smaller valve bodies at 7 stations, the SS5V1 (SV1000) reduces cost when lower flow is acceptable. For serial bus communication, the SS5V2-W series integrates EX260/EX600 fieldbus. For the highest flow in the SV series, the SS5V3 (SV3000) provides maximum Cv. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SS5V2/SV2000 (Clean Room)
- Product Type:
- Solenoid Valve Manifold
- Stations:
- 7
- Electrical:
- D-Sub Connector (10FD1)
- Base Type:
- Tie-Rod
- Port Size:
- 3/8" (C6)
- Port Arrangement:
- U-Type
- Mounting:
- DIN Rail (D0)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
