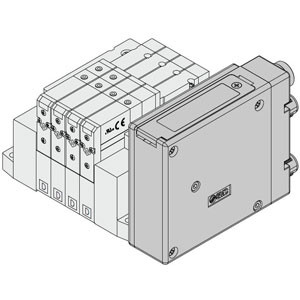

SMC 10-SS5V2-W10S1EAND-08B-N7-D0 | Clean Room SV2000 Valve Manifold 8-Station EX260 Serial Bus Tie-Rod Base 1/2" NPT DIN Rail
SMC
$646.85
The SMC 10-SS5V2-W10S1EAND-08B-N7-D0 is a clean room specification solenoid valve manifold from the SV2000 series with integrated EX260 serial transmission system. Part number decoded: SS5V2 = SV2000 manifold, W10S1EAND = EX260 integrated fieldbus communication module (output-only type, EtherNet/IP or DeviceNet protocol designation), 08B = 8-station with B-type ports, N7 = 1/2" NPT port size, D0 = DIN rail mount.
What is the advantage of EX260 serial bus over D-sub parallel wiring? The EX260 integration replaces the multi-pin D-sub connector with a single fieldbus communication cable (typically EtherNet/IP, DeviceNet, PROFIBUS, or CC-Link depending on the protocol module). One network cable controls all 8 valve stations, enabling rapid commissioning, diagnostic monitoring, remote troubleshooting, and seamless integration with modern PLC architectures. This is particularly valuable in clean room equipment where minimizing cable count reduces particle-trapping surfaces and simplifies equipment qualification.
The 8-station configuration with 1/2" NPT ports and SV2000 valve bodies provides high-flow serial-controlled valve management for complex clean room pneumatic systems. For D-sub parallel wiring at the same station count, the SS5V2-10FD series is available. For EX600 integrated communication with input/output capability, the SS5V2-W10S6 series adds discrete I/O alongside valve control. For fewer stations on EX260, reduce the station count suffix. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SS5V2/SV2000 (Clean Room)
- Product Type:
- Solenoid Valve Manifold
- Stations:
- 8
- Communication:
- EX260 Serial Bus (Output)
- Protocol:
- EtherNet/IP or DeviceNet
- Base Type:
- Tie-Rod
- Port Size:
- 1/2" NPT (N7)
- Mounting:
- DIN Rail (D0)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
