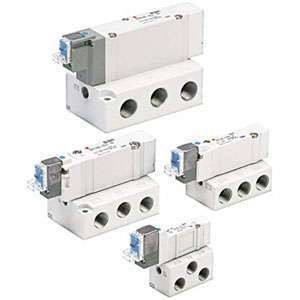

SMC 10-SY3140RT-5MOZ-01 | Clean Room 5-Port Solenoid Valve SY3000 Series Base Mounted Single Unit Rubber Seal 1/8" NPT
SMC
$63.05
The SMC 10-SY3140RT-5MOZ-01 is a clean room specification 5-port solenoid valve from the SY3000 series, configured as a base-mounted single unit. Part number decoded: SY3140 = SY3000 series type 140 (specific valve function 5-port 2-position single solenoid), R = rubber seal type, T = specific internal valve configuration, 5MOZ = solenoid specification (5 = 24VDC common, M = specific coil type, O = option, Z = auto-switch groove), 01 = 1/8" NPT port size.
The R (rubber seal) designation indicates elastomer seals rather than metal seals, providing reliable sealing performance across standard operating temperature and pressure ranges at lower cost. The SY3000 spool-valve architecture delivers fast response times (typically under 20ms) and high flow-to-size ratio compared to poppet-type alternatives. As a base-mounted single unit, this valve can be installed standalone near its controlled actuator or mounted on an SY3000 manifold base for multi-valve configurations.
The SY3140RT-5MOZ-01 provides the compact SY3000 platform in a single-valve format with 1/8" NPT connections. For manifold-mounted SY3000 multi-valve assemblies, the SS5Y3 series provides bar stock base manifolds. For the larger SY5000 with higher flow, the SY5140 provides equivalent functionality in a bigger body. For body-ported single-unit mounting without a sub-plate, the SY3120 and SY5120 provide direct-port configurations. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SY3000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Single Unit)
- Valve Function:
- 5-Port 2-Position Single Solenoid
- Seal Type:
- Rubber (R)
- Mounting:
- Base Mounted
- Port Size:
- 1/8" NPT (01)
- Solenoid:
- 24VDC
- Auto-Switch:
- Compatible (Z)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
