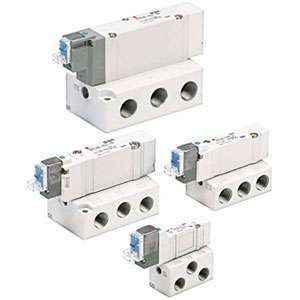

SMC 10-SY5240-5LZE-02 | Clean Room 5-Port Solenoid Valve SY5000 Series Base Mounted Double Solenoid 1/4" NPT
SMC
$97.55
The SMC 10-SY5240-5LZE-02 is a clean room specification 5-port solenoid valve from the SY5000 series, configured as a base-mounted double solenoid unit. Part number decoded: SY5240 = SY5000 series type 240 (5-port 3-position or 5-port 2-position double solenoid), 5LZE = solenoid specification (5 = voltage, L = specific coil type, Z = auto-switch groove, E = specific connector/option), 02 = 1/4" NPT port size.
What is the advantage of double solenoid versus single solenoid? A single solenoid valve uses a spring to return the spool to its de-energized position. A double solenoid valve has solenoids on both ends energizing one side shifts the spool left, energizing the other shifts it right. When both are de-energized, the spool stays in its last position (memory function). This is critical in clean room applications where actuators must hold their position during power loss or emergency stops, preventing uncontrolled cylinder retraction that could damage workpieces or create safety hazards.
The SY5240-5LZE-02 provides memory-position valve control with SY5000 high-flow capability at 1/4" NPT ports. For single solenoid spring return at the same size, the SY5120 or SY5140 provides fail-safe retraction. For larger double solenoid valves, the SY7240 (SY7000) increases flow. For manifold-mounted double solenoid assemblies, the SS5Y5 series provides multi-station configurations. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SY5000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Base Mounted)
- Valve Function:
- Double Solenoid (Memory Position)
- Mounting:
- Base Mounted
- Port Size:
- 1/4" NPT (02)
- Auto-Switch:
- Compatible (Z)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
