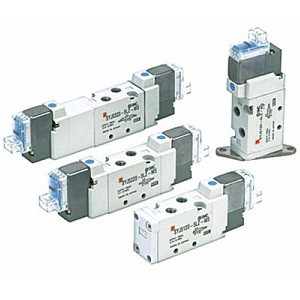

SMC 10-SYJ3123-1LND-M3-F | Clean Room 5-Port Solenoid Valve SYJ3000 Series Rubber Seal Body Ported M3 Thread F Option
SMC
$52.75
The SMC 10-SYJ3123-1LND-M3-F is a clean room specification 5-port solenoid valve from the SYJ3000 series with rubber seal and body-ported construction. Part number decoded: SYJ3123 = SYJ3000 series type 123 (specific valve function), 1LND = solenoid specification (1 = 24VDC, L = coil type, N = specific connector, D = DIN connector option), M3 = M3 metric threaded port, F = specific option (typically related to mounting bracket or body modification).
What distinguishes the SYJ3000 from the SY3000? The SYJ series is a compact variant of the SY series with a reduced body profile, enabling installation in even tighter spaces than the standard SY3000. The SYJ maintains the same spool-valve architecture and flow characteristics in a smaller envelope, making it ideal for micro-pneumatic applications in semiconductor equipment, medical devices, and analytical instruments where M3 threaded ports and minimum valve footprint are required.
The M3 metric port is one of the smallest standard pneumatic connections, suited for 2-4mm OD micro-tubing systems. The DIN connector (D suffix in the solenoid code) provides a standardized electrical connection that enables quick valve replacement without rewiring. The F option modifies the body configuration. For larger ports in the SYJ3000, M5 and 1/8" NPT options are available. For even smaller valves, the SY100 series provides the most compact option. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ3000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Body Ported)
- Seal Type:
- Rubber
- Port Size:
- M3 (Metric)
- Solenoid:
- 24VDC DIN Connector
- Option:
- F
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
