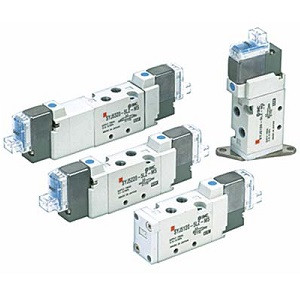

SMC 10-SYJ3123-2LO-M3-F | Clean Room 5-Port Solenoid Valve SYJ3000 Series Rubber Seal Body Ported M3 Thread 2L Solenoid F Option
SMC
$49.35
The SMC 10-SYJ3123-2LO-M3-F is a clean room specification 5-port solenoid valve from the SYJ3000 series with rubber seal and body-ported construction. Part number decoded: SYJ3123 = SYJ3000 series type 123, 2LO = solenoid specification (2 = specific voltage, L = coil type, O = specific option/connector type), M3 = M3 metric threaded port, F = body option. This variant differs from the 1LND version in its solenoid voltage and connector configuration.
The 2L solenoid designation typically indicates a different operating voltage than the 1L variant (commonly 100-110VAC versus 24VDC), while the O suffix specifies the connector type. Selecting the correct solenoid voltage is critical the valve must match the PLC output module or control system voltage available in the equipment. Clean room semiconductor equipment commonly uses 24VDC for safety and electromagnetic compatibility, while some legacy or high-power systems use AC solenoid voltages.
The SYJ3123-2LO-M3-F shares the same compact SYJ3000 body, M3 micro-port, rubber seal construction, and body-ported mounting as the 1LND variant. The only differences are solenoid voltage and connector type. For 24VDC with DIN connector, see the SYJ3123-1LND-M3-F. For other solenoid voltages, the SYJ3123 is available in multiple voltage options across the SYJ3000 catalog. For larger ports, M5 and 1/8" NPT are available. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ3000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Body Ported)
- Seal Type:
- Rubber
- Port Size:
- M3 (Metric)
- Solenoid:
- 2LO (Specific Voltage/Connector)
- Option:
- F
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
