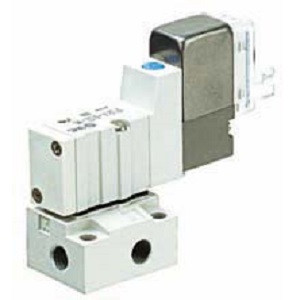

SMC 10-SYJ314M-5LOE-M5 | Clean Room 3-Port Pilot Solenoid Valve SYJ300 Series Rubber Seal Base Mounted M5 Thread
SMC
$47.20
The SMC 10-SYJ314M-5LOE-M5 is a clean room specification 3-port pilot solenoid valve from the SYJ300 series with rubber seal and base-mounted construction. Part number decoded: SYJ314M = SYJ300 series type 14M (3-port pilot valve with M-type internal configuration), 5LOE = solenoid specification (5 = 24VDC, L = coil type, O = option, E = connector type), M5 = M5 metric threaded port.
What is a 3-port pilot valve and when is it used? A 3-port pilot valve controls a single pneumatic signal either pressurizing or exhausting one output port. Common applications include piloting larger main valves (using low-flow pilot air to switch high-flow main valves), controlling single-acting cylinders (extend with air, retract with spring), operating pneumatic clamps, and switching air signals in logic circuits. In clean room equipment, 3-port pilot valves frequently serve as pilot stages for larger process valves, air-operated gate valves, and pneumatic logic systems.
The SYJ300 series is the compact 3-port counterpart to the SYJ3000 5-port series, sharing the same reduced-profile body for tight installation spaces. The M5 port size is one step up from M3, providing slightly more flow capacity while remaining compact. For 5-port control of double-acting actuators, step up to the SYJ3000 series. For even smaller 3-port valves, the SY100 series provides M3 port options. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ300 (Clean Room)
- Product Type:
- 3-Port Pilot Solenoid Valve
- Seal Type:
- Rubber
- Mounting:
- Base Mounted
- Port Size:
- M5 (Metric)
- Solenoid:
- 24VDC (5LOE)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
