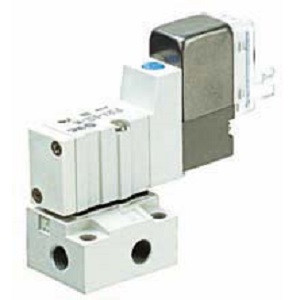

SMC 10-SYJ314MT-5LZ-M5 | Clean Room 3-Port Pilot Solenoid Valve SYJ300 Series Rubber Seal Base Mounted M5 Thread T Config Auto-Switch
SMC
$47.20
The SMC 10-SYJ314MT-5LZ-M5 is a clean room specification 3-port pilot solenoid valve from the SYJ300 series with T configuration and auto-switch groove. Part number decoded: SYJ314M = SYJ300 type 14M, T = specific internal valve configuration (modified spool or port arrangement), 5LZ = solenoid specification (5 = 24VDC, L = coil type, Z = auto-switch groove), M5 = M5 metric port.
The T suffix modifies the internal valve configuration from the standard SYJ314M. This may indicate a different normally-open/normally-closed port arrangement, modified exhaust path, or specific spool position behavior that suits a particular pneumatic circuit requirement. The Z (auto-switch groove) enables mounting position sensors on the valve body to confirm spool actuation, providing the PLC with valve-state feedback for sequence verification and safety monitoring in clean room automation.
The SYJ314MT-5LZ-M5 combines the T configuration with auto-switch capability and 24VDC operation. For the standard configuration without T modification, the SYJ314M-5LOE-M5 provides the base 3-port pilot function. For 5-port control, step up to the SYJ3000 series. For the T configuration without auto-switch, remove the Z from the solenoid code. Auto switches sold separately. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ300 (Clean Room)
- Product Type:
- 3-Port Pilot Solenoid Valve
- Seal Type:
- Rubber
- Configuration:
- T-Type
- Mounting:
- Base Mounted
- Port Size:
- M5 (Metric)
- Solenoid:
- 24VDC (5LZ)
- Auto-Switch:
- Compatible (Z Groove)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
