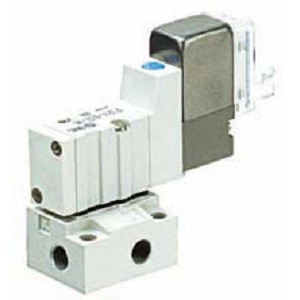

SMC 10-SYJ324M-5WOU-M5 | Clean Room 3-Port Pilot Solenoid Valve SYJ300 Series Rubber Seal Base Mounted M5 Thread Double Solenoid Universal
SMC
$58.55
The SMC 10-SYJ324M-5WOU-M5 is a clean room specification 3-port pilot solenoid valve from the SYJ300 series with double solenoid configuration. Part number decoded: SYJ324M = SYJ300 series type 24M (3-port double solenoid note the "2" indicating 2-position with solenoids on both sides), 5WOU = solenoid specification (5 = voltage, W = double solenoid, O = option, U = universal voltage capability), M5 = M5 metric port.
A double solenoid 3-port valve provides memory-position operation: energize one solenoid to open the supply-to-output path, energize the other to close it and connect output to exhaust. When both are de-energized, the valve holds its last position. This is the 3-port equivalent of the double solenoid 5-port valve concept. The U (universal voltage) feature allows the solenoid to operate across a range of voltages (typically 12-24VDC or multi-voltage AC/DC), simplifying spare parts inventory and enabling the same valve to work across different equipment platforms.
The SYJ324M-5WOU-M5 provides memory-position pilot control valuable when the pilot signal must hold state during power interruptions. For single solenoid spring-return operation (fail-safe to one position), the SYJ314M provides the standard 3-port configuration. For 5-port double solenoid control, step up to SYJ3000 5-port variants. For fixed-voltage operation at lower cost, specify a non-U solenoid variant. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ300 (Clean Room)
- Product Type:
- 3-Port Pilot Solenoid Valve
- Valve Function:
- Double Solenoid (Memory Position)
- Seal Type:
- Rubber
- Mounting:
- Base Mounted
- Port Size:
- M5 (Metric)
- Solenoid:
- Universal Voltage (5WOU)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
