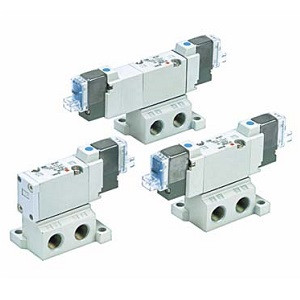

SMC 10-SYJ3343-5LZ | Clean Room 5-Port Solenoid Valve SYJ3000 Series Rubber Seal Base Mounted Double Solenoid Auto-Switch Ready
SMC
$82.50
The SMC 10-SYJ3343-5LZ is a clean room specification 5-port solenoid valve from the SYJ3000 series with rubber seal, base-mounted construction, and double solenoid operation. Part number decoded: SYJ3343 = SYJ3000 series type 343 (5-port double solenoid with specific port configuration), 5LZ = solenoid specification (5 = 24VDC, L = coil type, Z = auto-switch groove). No port size suffix is visible, indicating the port size is defined by the type 343 designation or is the default for this variant.
The SYJ3343 double solenoid provides memory-position control in the compact SYJ3000 base-mounted format. Base mounting means the valve bolts to a manifold sub-plate or dedicated mounting surface where port connections are pre-plumbed, enabling quick valve replacement without disconnecting tubing. The combination of double solenoid, auto-switch groove, and base mounting creates a serviceable, position-verifiable valve assembly for clean room applications requiring last-position memory during power loss.
The SYJ3343-5LZ provides 24VDC double solenoid operation with auto-switch capability. For single solenoid spring return in the same base-mounted format, the SYJ3143 provides fail-safe operation. For body-ported single-unit mounting, the SYJ3123 series provides direct-port configurations. For manifold-mounted multi-valve assemblies, the SS5YJ3 manifold base accepts multiple SYJ3000 valves. Auto switches sold separately. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ3000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Base Mounted)
- Valve Function:
- Double Solenoid (Memory Position)
- Seal Type:
- Rubber
- Mounting:
- Base Mounted
- Solenoid:
- 24VDC (5LZ)
- Auto-Switch:
- Compatible (Z Groove)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
