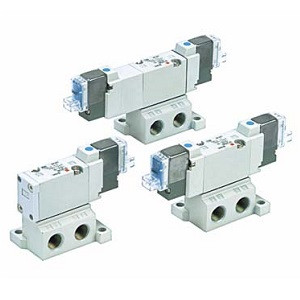

SMC 10-SYJ3443-5GD-M5 | Clean Room 5-Port Solenoid Valve SYJ3000 Series Rubber Seal Base Mounted Double Solenoid M5 Port Grommet DIN
SMC
$83.20
The SMC 10-SYJ3443-5GD-M5 is a clean room specification 5-port solenoid valve from the SYJ3000 series with rubber seal, base-mounted double solenoid configuration, and M5 port. Part number decoded: SYJ3443 = SYJ3000 series type 443 (5-port double solenoid with specific port arrangement the 443 differs from 343 in exhaust port or internal flow path configuration), 5GD = solenoid specification (5 = 24VDC, G = grommet entry, D = DIN connector type), M5 = M5 metric port.
The 5GD solenoid combines grommet-sealed cable entry with DIN connector standardization, providing a robust electrical connection that protects against particle-generating exposed wire splices while enabling quick valve replacement via standardized connector disconnect. The M5 port provides slightly higher flow than M3 while remaining compact, suitable for small clean room actuators, pilot air circuits, and low-flow pneumatic switching applications.
The SYJ3443-5GD-M5 provides the double solenoid memory function with DIN connector convenience at M5 port size. For the type 343 variant with different exhaust configuration, see SYJ3343. For single solenoid spring return, the SYJ3143 type provides fail-safe operation. For body-ported installation without sub-plate, the SYJ3123 series provides direct-port configurations. For larger ports, 1/8" NPT and 1/4" options are available. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ3000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Base Mounted)
- Valve Function:
- Double Solenoid (Memory Position)
- Seal Type:
- Rubber
- Mounting:
- Base Mounted
- Port Size:
- M5 (Metric)
- Solenoid:
- 24VDC Grommet DIN (5GD)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
