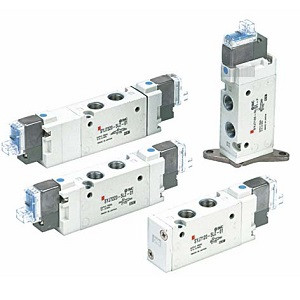

SMC 10-SYJ7123-3DZ-01N | Clean Room 5-Port Solenoid Valve SYJ7000 Series Rubber Seal Body Ported 1/8" NPT Auto-Switch High Flow
SMC
$77.85
The SMC 10-SYJ7123-3DZ-01N is a clean room specification 5-port solenoid valve from the SYJ7000 series with rubber seal, body-ported construction, and auto-switch groove. Part number decoded: SYJ7123 = SYJ7000 series type 123 (body ported 5-port single solenoid), 3DZ = solenoid specification (3 = specific voltage, D = DIN connector, Z = auto-switch groove), 01N = 1/8" NPT port with N sealant. The SYJ7000 is the largest valve body in the SYJ compact series, providing the highest flow in the SYJ family.
The SYJ7000 delivers significantly higher Cv than the SYJ3000, enabling faster actuator cycling and supporting larger bore cylinders in the compact SYJ form factor. The body-ported construction provides direct tube connections for standalone installation near the controlled actuator. The DIN connector (D) enables standardized quick-disconnect electrical service, and the auto-switch groove (Z) allows valve position verification via external sensors. The 1/8" NPT port with factory sealant (N) provides the most common small-port connection in North American pneumatic systems.
The SYJ7123-3DZ-01N is the high-flow option in the SYJ body-ported range. For lower flow at smaller size, the SYJ3123 (SYJ3000) provides a more compact option. For even higher flow beyond the SYJ7000, step up to the full-size SY7000 series (non-J). For base-mounted SYJ7000 on manifold sub-plates, the SYJ7143 type is available. For 3/8" NPT ports, specify the 03 port option. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ7000 (Clean Room)
- Product Type:
- 5-Port Solenoid Valve (Body Ported)
- Seal Type:
- Rubber
- Port Size:
- 1/8" NPT (01N)
- Solenoid:
- DIN Connector (3DZ)
- Auto-Switch:
- Compatible (Z Groove)
- Flow:
- High (Largest SYJ Body)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
