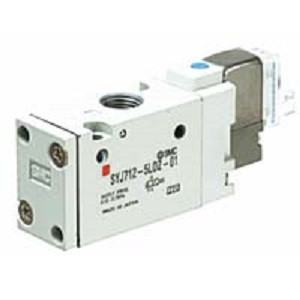

SMC 10-SYJ712M-5MNZD-01-F | Clean Room 3-Port Pilot Solenoid Valve SYJ700 Series Rubber Seal Body Ported 1/8" NPT High Flow
SMC
$67.85
The SMC 10-SYJ712M-5MNZD-01-F is a clean room specification 3-port pilot solenoid valve from the SYJ700 series with rubber seal and body-ported construction. Part number decoded: SYJ712M = SYJ700 series type 12M (3-port pilot valve with M-type configuration), 5MNZD = solenoid specification (5 = 24VDC, M = coil type, N = specific connector, Z = auto-switch groove, D = DIN connector), 01 = 1/8" NPT port, F = body option.
The SYJ700 is the 3-port counterpart to the SYJ7000 5-port series, providing the highest flow capacity among SYJ compact 3-port pilot valves. The larger body and higher Cv enable this pilot valve to handle higher flow pilot circuits, faster pilot response for large main valves, and direct control of small single-acting actuators at higher speed than the smaller SYJ300 series can deliver. The body-ported construction provides standalone installation near the controlled device.
The SYJ712M-5MNZD-01-F combines 24VDC operation, DIN connector, auto-switch groove, and the F body option in the largest SYJ 3-port platform. For lower flow in the 3-port pilot valve category, the SYJ314M (SYJ300) provides a more compact option. For 5-port control, step up to the SYJ7123 (SYJ7000). For even higher flow beyond the SYJ700, the full-size SY7000 series 3-port variants are available. Auto switches sold separately. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-SYJ700 (Clean Room)
- Product Type:
- 3-Port Pilot Solenoid Valve
- Seal Type:
- Rubber
- Port Size:
- 1/8" NPT (01)
- Solenoid:
- 24VDC DIN (5MNZD)
- Auto-Switch:
- Compatible (Z Groove)
- Option:
- F
- Flow:
- High (Largest SYJ 3-Port)
- Body Profile:
- Compact (SYJ)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
