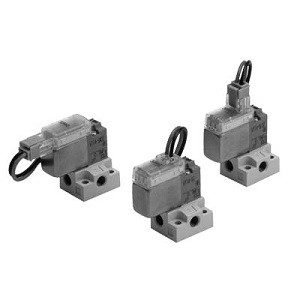

SMC 10-V114A-5MNU | Clean Room 3-Port Solenoid Valve V100 Series Large Flow Type Base Mounted 24VDC
SMC
$24.45
The SMC 10-V114A-5MNU is a clean room specification 3-port solenoid valve from the V100 series, classified as a large flow type with base mounting. Part number decoded: V114A = V100 series type 14A (3-port normally closed with A-type modification), 5MNU = solenoid specification (5 = 24VDC, M = coil type, N = specific connector, U = universal voltage option). The V100 series is a distinct valve platform from the SY series, designed specifically for high-flow 3-port applications.
What makes the V100 a "large flow" 3-port valve? Standard 3-port solenoid valves in the SY and SYJ series are compact but flow-limited. The V100 series uses a larger valve body with an oversized flow path, delivering significantly higher Cv than compact 3-port alternatives. This high flow capacity is essential for piloting large process valves, controlling high-speed single-acting cylinders, rapidly pressurizing or exhausting air tanks, and switching large-volume pneumatic circuits where compact 3-port valves would create excessive pressure drop.
The V114A-5MNU provides 24VDC operation with universal voltage capability in the large-flow V100 platform. For standard flow 3-port valves in a compact body, the SYJ300 or SY100 series provide more space-efficient options. For even higher flow, consult SMC for VF or VP series process valves. For 5-port control, the V100 series does not apply step to SY or SV 5-port series. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-V100 (Clean Room)
- Product Type:
- 3-Port Solenoid Valve (Large Flow)
- Flow:
- Large (High Cv)
- Mounting:
- Base Mounted
- Solenoid:
- 24VDC Universal (5MNU)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
