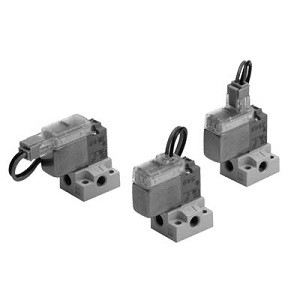

SMC 10-V114A-SM | Clean Room 3-Port Solenoid Valve V100 Series Large Flow Type Base Mounted SM Solenoid Configuration
SMC
$30.80
The SMC 10-V114A-SM is a clean room specification 3-port solenoid valve from the V100 series, large flow type with base mounting and SM solenoid configuration. Part number decoded: V114A = V100 series type 14A (3-port normally closed with A-type modification), SM = specific solenoid/manual override configuration. The SM designation may indicate a manual override mechanism integrated with the solenoid, allowing the valve to be manually actuated for testing and commissioning without energizing the solenoid.
Manual override capability is valuable during clean room equipment installation, commissioning, and troubleshooting. Maintenance technicians can cycle the valve by hand to verify pneumatic circuit function, test actuator movement, and bleed air from lines without applying electrical signals. This reduces commissioning time and enables pneumatic diagnostics independent of the PLC and control wiring. In clean room environments, this capability minimizes the time equipment panels must remain open during servicing, reducing particle exposure.
The V114A-SM provides the same large-flow 3-port capability as the V114A-5MNU but with the SM solenoid/override configuration. For the 24VDC universal voltage option, see V114A-5MNU. The V100 large flow platform delivers significantly higher Cv than compact SYJ and SY 3-port valves, suited for high-volume pilot circuits and large pneumatic switching applications. Clean series (10-) fluorine grease, Particle Grade 1. RoHS compliant.
- Series:
- 10-V100 (Clean Room)
- Product Type:
- 3-Port Solenoid Valve (Large Flow)
- Flow:
- Large (High Cv)
- Mounting:
- Base Mounted
- Solenoid:
- SM Configuration (Manual Override)
- Clean Room Grade:
- Particle Generation Grade 1
- Certifications:
- RoHS
