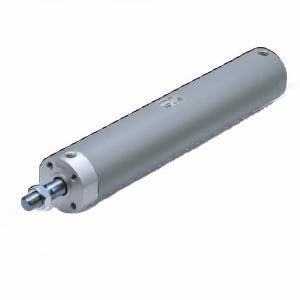

SMC 11-CDG1BA50-150Z | Clean Room Air Cylinder CG1 Series 50mm Bore 150mm Stroke Double-Acting Single Rod Round Body
SMC
$154.85
The SMC 11-CDG1BA50-150Z is a clean room specification air cylinder from the CG1 series with 50mm bore and 150mm stroke. Part number decoded: CDG1 = CG1 series double acting, B = basic type, A = band mount style, 50 = 50mm bore, 150 = 150mm stroke, Z = clean room auto-switch groove. The 11- prefix designates enhanced clean room grade specification.
The 150mm stroke provides 10mm more travel than the CDG1BA50-140Z, offering slightly extended reach for applications where the extra displacement is needed. Both share identical bore, mounting style, and force output the only difference is stroke length. This highlights the importance of precise stroke specification in clean room equipment: actuator travel is typically engineered to match exact fixture dimensions, and even small stroke differences prevent mechanical interference or ensure complete workpiece engagement.
The CDG1BA50-150Z is the 150mm stroke sibling to the 140Z variant. When selecting between the two, verify the required actuator travel against the machine's mechanical layout drawing. For shorter strokes at 50mm bore, the CG1 series offers standard increments down to 25mm. For longer strokes, increments extend to 300mm and beyond. For compact form factor at similar force, the CQ2B50 compact cylinder saves installation space at the cost of limited mounting versatility. The CG1 accepts D-series auto switches. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CG1-Z (Clean Room)
- Cylinder Type:
- Round Body
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 50mm
- Stroke:
- 150mm
- Mounting:
- BA (Band Mount)
- Auto-Switch:
- Compatible (Z Groove)
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
