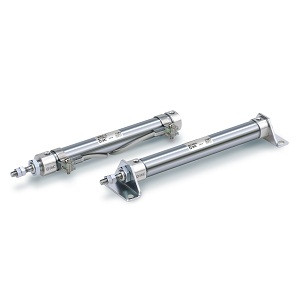

SMC 11-CDJ2B16-150Z-M9P-B | Clean Room Air Cylinder CJ2 Series 16mm Bore 150mm Stroke Double-Acting Single Rod Auto-Switch Mounted
SMC
$131.80
The SMC 11-CDJ2B16-150Z-M9P-B is a clean room specification air cylinder from the CJ2 series, delivered with a pre-mounted auto-switch. Part number decoded: CDJ2 = CJ2 series double acting, B = basic mount (both ends tapped), 16 = 16mm bore, 150 = 150mm stroke, Z = clean room auto-switch groove, M9P = pre-mounted D-M9P auto-switch (solid state, NPN open collector), B = specific cable or connector option for the auto-switch.
The M9P auto-switch is a solid-state magnetic sensor that detects the piston position through the cylinder wall using a magnetic piston ring. The NPN open collector output sinks current when the piston is within the switch's sensing zone, providing a digital signal to the PLC confirming actuator position. Pre-mounting the auto-switch at the factory eliminates field installation time and ensures correct switch positioning for the specified stroke length. The B option specifies the cable length or connector type.
The CDJ2B16-150Z-M9P-B is a complete actuator-plus-sensor assembly ready for immediate installation. For the cylinder without pre-mounted switch, specify CDJ2B16-150Z and order D-M9P switches separately. For PNP output instead of NPN, specify M9N or M9B auto-switch variants. The CJ2 round body series at 16mm bore provides approximately 12N force at 0.6 MPa, suited for light pick-and-place, sensor positioning, and small component handling in clean room environments. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CJ2-Z (Clean Room)
- Cylinder Type:
- Round Body
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 16mm
- Stroke:
- 150mm
- Mounting:
- Both Ends Tapped (B)
- Auto-Switch:
- D-M9P Pre-Mounted (NPN)
- Option:
- B
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
