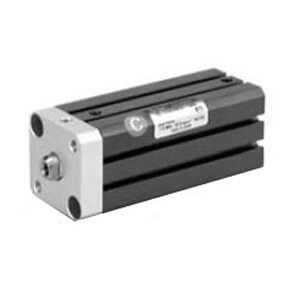

SMC 11-CDQSXB16-10DM-A93 | Clean Room Low Speed Cylinder CQSX Series 16mm Bore 10mm Stroke Anti-Stick-Slip Auto-Switch Bracket
SMC
$133.70
The SMC 11-CDQSXB16-10DM-A93 is a clean room specification low speed cylinder from the CQSX series with auto-switch mounting bracket. Part number decoded: CDQSX = CQSX series double acting guided low speed, B = both ends tapped, 16 = 16mm bore, 10 = 10mm stroke, D = option, M = modification, A93 = auto-switch mounting bracket included. The A93 bracket provides a standardized mounting point for D-series auto-switches when the cylinder body does not have an integrated Z groove.
The 16mm bore with only 10mm stroke creates an extremely short-travel low-speed actuator. This configuration is designed for precision micro-positioning applications where the cylinder must move a very small distance with smooth, controlled velocity and no stick-slip behavior. Applications include fine-adjustment of optical elements, micro-dispensing valve actuation, precision probe positioning, and delicate component insertion where even slight velocity variation could cause damage or quality defects.
The CDQSXB16-10DM-A93 includes the A93 bracket for auto-switch mounting, enabling position feedback. For the same CQSX at 16mm bore with longer strokes, options extend to 50mm and beyond. For standard-speed guided operation, the CDQSB16 (CQS) provides faster cycling without low-speed control. For the smallest CQSX bore, the CDQSXB12 provides 12mm bore options. For even shorter strokes with guided motion, the compact CQ2 series offers strokes as low as 5mm. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CQSX (Clean Room)
- Cylinder Type:
- Compact Guided Low Speed
- Action:
- Double-Acting
- Rod:
- Single Rod with Dual Guides
- Bore:
- 16mm
- Stroke:
- 10mm
- Feature:
- Anti-Stick-Slip (X)
- Mounting:
- Both Ends Tapped (B)
- Option:
- DM
- Auto-Switch:
- A93 Bracket Included
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
