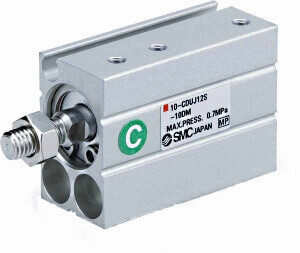

SMC 11-CDUJB10-10D-F8BLS | Clean Room Mini Free Mount Cylinder CUJ Series 10mm Bore 10mm Stroke Auto-Switch Pre-Mounted
SMC
$82.50
The SMC 11-CDUJB10-10D-F8BLS is a clean room specification mini free mount cylinder from the CUJ series with factory-installed auto-switch. Part number decoded: CDUJ = CUJ series double acting, B = basic mount, 10 = 10mm bore, 10 = 10mm stroke, D = option, F8BLS = pre-mounted auto-switch assembly (F8 = CUJ-specific switch bracket, B = switch type, L = lead wire specification, S = specific cable/connector option).
The F8BLS auto-switch assembly is specifically designed for the CUJ mini cylinder's small body. Standard D-series auto switches used on larger cylinders are too big for the CUJ form factor, so SMC developed the F8 series miniature switch bracket and sensor combination. This pre-mounted assembly provides piston position feedback from a cylinder body that is barely larger than a fingertip, enabling PLC confirmation of actuator state even in the most space-constrained clean room installations.
The CDUJB10-10D-F8BLS is a complete actuator-plus-sensor assembly ready for direct installation without field switch mounting. For the base cylinder without switch, the CDUJB10-10D provides the lowest-cost option when position sensing is handled elsewhere. For other bore sizes with pre-mounted switches, the CUJ series offers F8 switch options across all bore sizes from 4mm to 20mm. The pre-mounted switch eliminates commissioning time and ensures correct switch positioning on this ultra-compact cylinder. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CUJ (Clean Room)
- Cylinder Type:
- Mini Free Mount
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 10mm
- Stroke:
- 10mm
- Mounting:
- Free Mount (B)
- Option:
- D
- Auto-Switch:
- F8BLS Pre-Mounted
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
