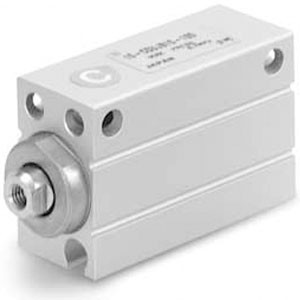

SMC 11-CDUJB8-15D-F8N | Clean Room Mini Free Mount Cylinder CUJ Series 8mm Bore 15mm Stroke Auto-Switch Non-Rotating
SMC
$54.68
The SMC 11-CDUJB8-15D-F8N is a clean room specification mini free mount cylinder from the CUJ series with F8N auto-switch option. Part number decoded: CDUJ = CUJ series double acting, B = basic mount, 8 = 8mm bore, 15 = 15mm stroke, D = option, F8N = miniature auto-switch assembly (F8 = CUJ-specific bracket, N = specific switch type or non-rotating rod configuration).
The 8mm bore is one of the smallest in the CUJ range, generating approximately 3N at 0.6 MPa. This micro-force output is precisely calibrated for handling delicate clean room components semiconductor dies, optical lenses, thin-film substrates, and micro-electronic assemblies where excessive force would cause damage. The 15mm stroke provides enough travel for component transfer, small gate operation, and micro-positioning while the F8N switch provides position feedback from this ultra-compact cylinder body.
The CDUJB8-15D-F8N combines micro-actuation with position sensing in one of the smallest pneumatic actuator assemblies available. For the same bore without switch, the CDUJB8-15D provides the base configuration. For smaller bore, the CDUJB6 (6mm) and CDUJB4 (4mm) provide even lighter force output. For larger bore at the same compact scale, the CDUJB10 doubles the force output. For guided micro-motion, the CQSX series provides anti-stick-slip operation starting at 12mm bore. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CUJ (Clean Room)
- Cylinder Type:
- Mini Free Mount
- Action:
- Double-Acting
- Rod:
- Single Rod
- Bore:
- 8mm
- Stroke:
- 15mm
- Mounting:
- Free Mount (B)
- Option:
- D
- Auto-Switch:
- F8N
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
