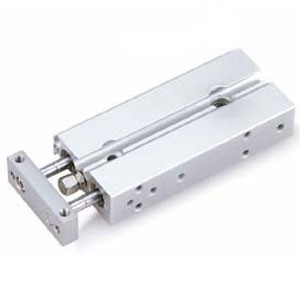

SMC 11-CXSJM10-20-M9PSAPC | Clean Room Dual Rod Cylinder CXSJ Series Compact 10mm Bore 20mm Stroke Auto-Switch Complete Assembly
SMC
$208.05
The SMC 11-CXSJM10-20-M9PSAPC is a clean room specification dual rod cylinder from the CXSJ series delivered as a complete assembly with pre-mounted auto-switches. Part number decoded: CXSJ = CXSJ compact dual rod series, M = specific body configuration, 10 = 10mm bore, 20 = 20mm stroke, M9PSAPC = auto-switch assembly (M9P = NPN solid-state switch, S = specific mounting, A = adjustment type, PC = pre-configured cable with connector).
The M9PSAPC suffix indicates a fully assembled unit with auto-switches factory-installed, adjusted, and wired with pre-terminated cables and connectors. This eliminates all field switch installation, positioning, and wiring work the unit arrives ready to connect directly to the PLC input module. The PC (pre-configured cable/connector) further reduces installation time by providing plug-and-play electrical connections rather than bare lead wires requiring field termination.
The CXSJM10-20-M9PSAPC is the most installation-ready CXSJ configuration, combining the compact ball bushing guided slide with complete sensing in one assembly. For the base CXSJ without switches, the CXSJL10 provides the cylinder-only option. For a longer stroke with the same fully-assembled concept, specify the M9PSAPC suffix with different stroke lengths. For larger bore complete assemblies, the CXSJ series extends to 15mm and 20mm bore with similar pre-mounted switch options. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CXSJ (Clean Room)
- Cylinder Type:
- Dual Rod Compact Slide Table
- Action:
- Double-Acting
- Guide:
- Ball Bushing
- Bore:
- 10mm
- Stroke:
- 20mm
- Body Type:
- M
- Auto-Switch:
- M9PSAPC Pre-Mounted Complete
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
