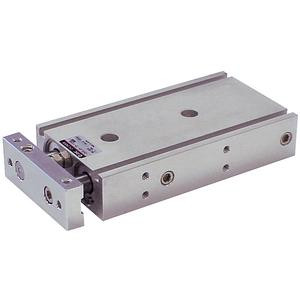

SMC 11-CXSM20-50 | Clean Room Dual Rod Cylinder CXS Series 20mm Bore 50mm Stroke Ball Bushing Guide M-Type Body
SMC
$168.55
The SMC 11-CXSM20-50 is a clean room specification dual rod cylinder from the CXS series with M-type body configuration. Part number decoded: CXS = CXS dual rod slide table, M = M-type body variant (different from the L-type, typically indicating a modified body profile, mounting interface, or port arrangement), 20 = 20mm bore, 50 = 50mm stroke.
The M-type body differentiates this from the L-type CXSL20-50. The M configuration typically offers a different table surface layout, modified port locations, or alternative mounting hole patterns that suit specific installation requirements. Both L and M types share the same core ball bushing guide mechanism, bore size, stroke, and force output the difference is in the external body interface and mounting geometry. Selecting between L and M types depends on the equipment's mechanical interface and available mounting space.
The CXSM20-50 provides the M-type alternative to the CXSL20-50 at the same 20mm bore and 50mm stroke. For the L-type body, the CXSL20-50 and CXSL20-50-Y7PZ provide the standard and auto-switch-equipped options. For complete pre-wired assembly in M-type, the M9PSAPC suffix can be specified. For the compact CXSJ version, the CXSJM designation provides the M-type compact body. For larger bore M-type slides, the CXSM25 steps up force output. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-CXS (Clean Room)
- Cylinder Type:
- Dual Rod Slide Table
- Action:
- Double-Acting
- Guide:
- Ball Bushing
- Bore:
- 20mm
- Stroke:
- 50mm
- Body Type:
- M
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
