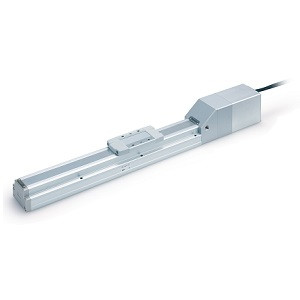

SMC 11-LEFS16AB-100B 11-LEFS Series Clean Room Specification Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,300.00
The SMC 11-LEFS16AB-100B is a high-performance electric actuator designed for clean room applications. This slider type actuator features a ball screw drive and is powered by a step motor (servo 24 VDC) or a servo motor (24 VDC), ensuring precise and reliable operation. With a maximum workload capacity of 60 kg and positioning repeatability of ±0.02 mm, it is ideal for tasks requiring high accuracy and efficiency.
The actuator is compatible with a range of controllers, including LECP6 (manufacture discontinued), LECA6, LECP1, LECPA, and LECPMJ, providing flexibility in integration. The series also includes an AC servo motor option, offering high output power (100/200/400 W) and enhanced high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20,000 mm/S², making it suitable for dynamic applications.
Additionally, the actuator comes with a pulse input type and an internal absolute encoder, further enhancing its precision and control. Compatible controllers for the AC servo motor variant include LECSA, LECSB, LECSC, and LECSS, ensuring seamless operation across various systems. Whether for industrial automation or specialized clean room environments, the SMC 11-LEFS16AB-100B delivers exceptional performance and reliability.
- Clean Series:
- Vacuum Suction Type
- Accuracy:
- Basic
- Size:
- 16
- Motor Type:
- Servo motor (24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 100 mm
- Motor Option:
- With Lock
- Vacuum Port:
- Left
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
