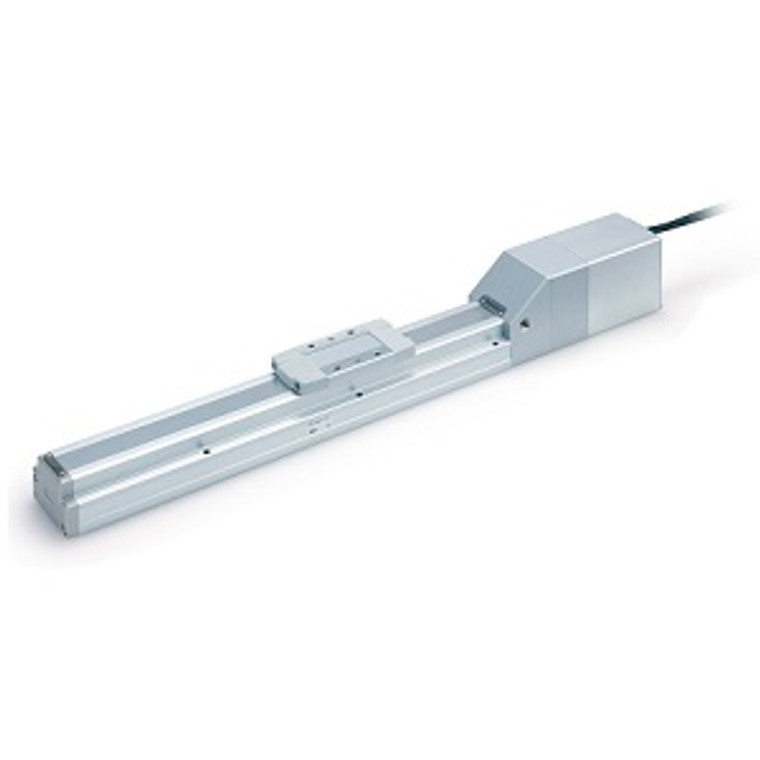

SMC 11-LEFS25B-200-S5C917 11-LEFS Series Clean Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series
SMC
$1,700.00
The SMC 11-LEFS25B-200-S5C917 is a high-performance electric actuator designed for precision and efficiency. Part of the 11-LEFS Series, this clean series actuator features a slider type ball screw drive and a step motor with a servo function, operating at 24 VDC. It is specifically engineered to be compatible with the JXC Series, ensuring seamless integration into your existing systems.
This actuator boasts a maximum workload capacity of 60 kg, making it suitable for a variety of industrial applications. With a positioning repeatability of ±0.02 mm, it guarantees precise and reliable performance. The actuator is compatible with several controllers, including LECP6, LECA6, LECP1, LECPA, and LECPMJ, although the LECP6 has been discontinued by the manufacturer.
The 11-LEFS Series also includes an AC servo motor option, offering high output power of 100/200/400 W. It is designed for improved high-speed transfer capabilities and features high acceleration and deceleration rates of up to 20,000 mm/S². The pulse input type and internal absolute encoder further enhance its functionality, ensuring accurate positioning and control.
Compatible with controllers such as LECSA, LECSB, LECSC, and LECSS, this actuator is a versatile and reliable choice for demanding industrial environments. Whether you need precise positioning or high-speed operation, the SMC 11-LEFS25B-200-S5C917 delivers exceptional performance and adaptability.
- Clean Series:
- Vacuum Suction Type
- Accuracy:
- Basic Type
- Size:
- 25
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- Without Lock
- Vacuum Port:
- Left
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type/Length:
- Standard Cable 5 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Plug Connector
