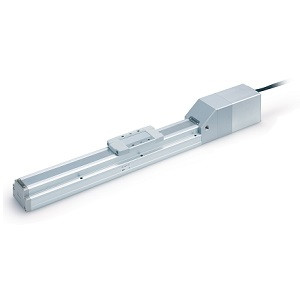

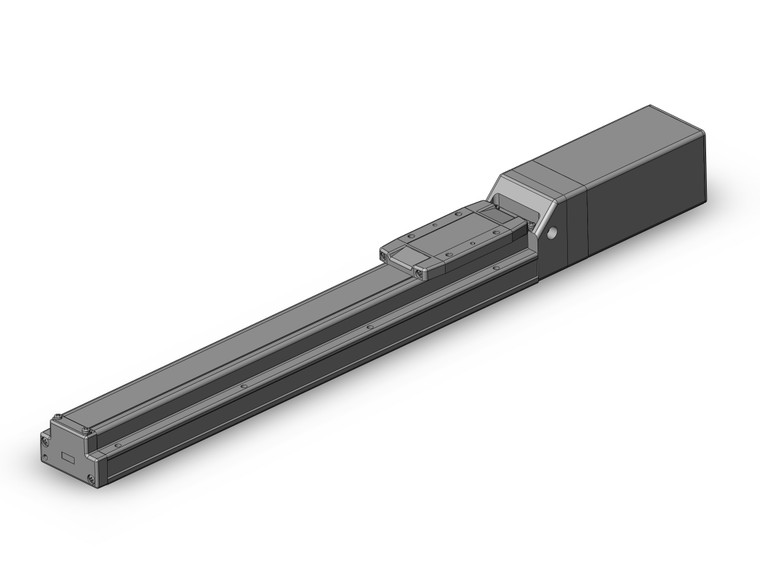

SMC 11-LEFS25B-300B 11-LEFS Series Clean Room Specification Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$1,340.00
The SMC 11-LEFS25B-300B is a high-performance electric actuator designed for clean room applications. This actuator features a slider type ball screw drive, powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), ensuring precise and reliable operation. With a maximum workload capacity of 60 kg and positioning repeatability of ±0.02 mm, it is ideal for tasks requiring high accuracy and efficiency.
The actuator is compatible with a range of controllers, including LECP6 (manufacture discontinued), LECA6, LECP1, LECPA, and LECPMJ, offering flexibility in integration. The series also includes an AC servo motor option, available in high output variants of 100, 200, and 400 W, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20,000 mm/S², making it suitable for dynamic applications.
Additionally, the actuator is equipped with an internal absolute encoder and supports pulse input type, further enhancing its precision and control. It is also compatible with controllers such as LECSA, LECSB, LECSC, and LECSS, providing a wide range of options for system configuration.
- Clean Series:
- Vacuum Suction Type
- Accuracy:
- Basic
- Size:
- 25
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- With Lock
- Vacuum Port:
- Left
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Without Cable
- Actuator Cable Length:
- Without Cable
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
