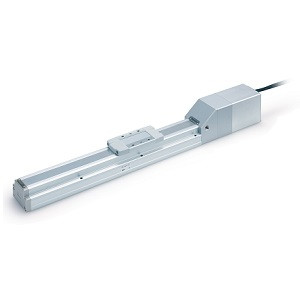

SMC 11-LEFS32B-300-RAC917 11-LEFS Series Clean Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series
SMC
$2,130.00
The SMC 11-LEFS32B-300-RAC917 is a high-performance electric actuator from the 11-LEFS Series, designed for precision and efficiency. This clean series actuator features a slider type ball screw drive and is powered by a step motor (Servo/24 VDC), making it ideal for applications requiring accurate positioning and smooth operation. It is compatible with the JXC Series controllers, ensuring seamless integration into your automation systems.
Key features include a maximum workload capacity of 60 kg and exceptional positioning repeatability of ±0.02 mm, ensuring reliable and precise performance. The actuator is compatible with a range of controllers, including LECP6, LECA6, LECP1, LECPA, and LECPMJ, although the LECP6 has been discontinued by the manufacturer.
The LEFS Series also offers an AC Servo Motor option with high output capabilities (100/200/400 W), enhanced high-speed transfer ability, and impressive high acceleration/deceleration rates of 20,000 mm/S². It includes a pulse input type and an internal absolute encoder for improved accuracy and control. Additionally, it is compatible with controllers such as LECSA, LECSB, LECSC, and LECSS, providing flexibility and adaptability for various industrial applications.
- Clean Series:
- Vacuum Suction Type
- Accuracy:
- Basic Type
- Size:
- 32
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Vacuum Port:
- Left
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type/Length:
- Robotic Cable 10 m
- Communication Protocol:
- EtherNet/IP
- Number Of Axes/Special Specification:
- Number Of Axis:For Single Axis Specification:Standard
- Mounting:
- Screw Mounting
- Communication Plug Connector I/O Cable:
- Without Plug Connector
