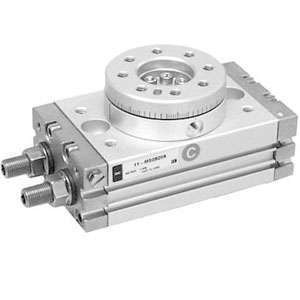

SMC 11-MSQA50A-M9BZ | Clean Room Rotary Table MSQ Series Size 50 A-Type Auto-Switch Mounted Large Capacity
SMC
$897.55
The SMC 11-MSQA50A-M9BZ is a clean room specification rotary table from the MSQ series in the large size 50 with A-type mechanism and pre-mounted auto-switch. Part number decoded: MSQ = MSQ rotary table, A = A-type body, 50 = size 50, A = rack-and-pinion mechanism, M9BZ = pre-mounted auto-switch (M9B type with Z clean room specification). Size 50 is one of the largest MSQ variants, providing maximum table area, load capacity, and rotational torque.
The size 50 MSQ handles the heaviest workpieces and largest tooling assemblies in the rotary table range. The rack-and-pinion mechanism (A-type) provides high torque output with rapid angular acceleration, suited for indexing heavy fixtures and rotating large assemblies. The large table surface provides extensive mounting area for multi-point fixturing and complex tooling arrangements. The M9BZ auto-switch provides rotational position feedback for PLC sequence control.
The MSQA50A-M9BZ provides the large-capacity A-type table with sensing. For the R-type vane mechanism at size 50, the MSQA50R provides an alternative with different torque-speed characteristics. For smaller tables, size 10 and size 20 provide compact options. For basic rotary actuation without a table surface, the CRA1 rotary actuator provides a simpler alternative. Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-MSQ (Clean Room)
- Actuator Type:
- Rotary Table
- Size:
- 50
- Mechanism:
- A-Type (Rack and Pinion)
- Auto-Switch:
- M9BZ Pre-Mounted
- Capacity:
- Large
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
