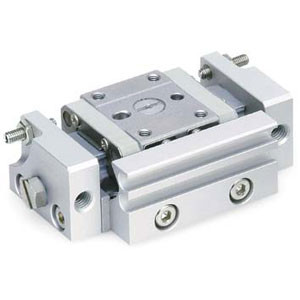

SMC 11-MXP16-30-A93 | Clean Room Air Slide Table MXP Series 16mm Bore 30mm Stroke with A93 Auto-Switch Bracket
SMC
$366.10
The SMC 11-MXP16-30-A93 is a clean room specification air slide table from the MXP series with auto-switch bracket. Part number decoded: MXP = MXP series air slide table, 16 = 16mm bore, 30 = 30mm stroke, A93 = auto-switch mounting bracket included. The MXP is a basic air slide table providing guided linear motion in a simple, cost-effective package.
The MXP series provides a flat-profile slide table with integrated linear guides for anti-rotation and moment load resistance. Compared to the more feature-rich MXQ and MXS series, the MXP offers a simpler, more economical slide table for applications where basic guided actuation is sufficient. At 16mm bore with 30mm stroke, the unit generates moderate force through a compact guided stroke suited for component feeding, sensor positioning, and light pick-and-place operations.
The MXP16-30-A93 includes the A93 bracket for auto-switch mounting. For the MXQ series with higher precision guides and more configuration options, the MXQ16 provides an upgrade. For the MXS series with even more features, the MXS16 steps up further. For smaller bore MXP options, the MXP12 provides a more compact slide. Auto-switches mount on the A93 bracket (sold separately). Clean series (11-) fluorine grease. RoHS compliant.
- Series:
- 11-MXP (Clean Room)
- Actuator Type:
- Air Slide Table
- Bore:
- 16mm
- Stroke:
- 30mm
- Auto-Switch:
- A93 Bracket Included
- Clean Room Grade:
- Enhanced (11-)
- Certifications:
- RoHS
