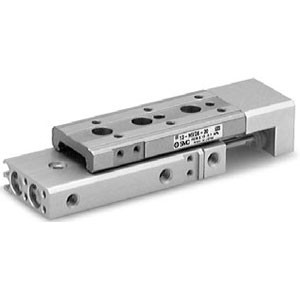

SMC 13-MXQ12L-10AS-A93 | Clean Room Air Slide Table MXQ Series 12mm Bore 10mm Stroke L-Type A-Port Stopper A93 Bracket
SMC
$502.90
The SMC 13-MXQ12L-10AS-A93 is a clean room specification air slide table from the MXQ series with L-type body, A-port configuration, stopper, and auto-switch bracket. Part number decoded: MXQ = MXQ series, 12 = 12mm bore, L = L-type body variant, 10 = 10mm stroke, A = A-port configuration, S = adjustable stopper, A93 = auto-switch mounting bracket.
The L-type body provides a different mounting footprint and port orientation compared to the standard MXQ12 body. The A-port specifies the air supply port location. The S (stopper) option adds adjustable mechanical stops that allow fine-tuning of the slide's travel distance on-site without changing the cylinder useful for applications where the exact stroke must be dialed in during commissioning or adjusted between product changeovers. The A93 bracket enables auto-switch mounting for position feedback.
The MXQ12L-10AS-A93 combines the L-type body with adjustable stopper and switch bracket at 12mm bore. For the C-type configuration at the same bore, the MXQ12-10C provides an alternative. For the L-type without stopper, remove the S from the configuration. For longer strokes, the MXQ12L series offers options up to 100mm+. Auto-switches mount on the A93 bracket (sold separately). Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXQ (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Recirculating Ball
- Bore:
- 12mm
- Stroke:
- 10mm
- Body Type:
- L
- Port:
- A
- Stopper:
- Adjustable (S)
- Auto-Switch:
- A93 Bracket
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
