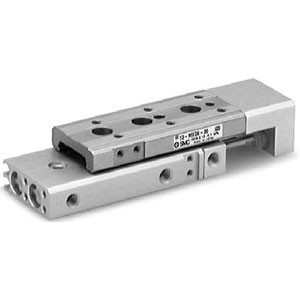

SMC 13-MXQ12L-40AS-M9NL | Clean Room Air Slide Table MXQ Series 12mm Bore 40mm Stroke L-Type Stopper Auto-Switch
SMC
$414.05
The SMC 13-MXQ12L-40AS-M9NL is a clean room specification air slide table from the MXQ series with adjustable stopper and pre-mounted auto-switch. Part number decoded: MXQ = MXQ series, 12 = 12mm bore, L = L-type body, 40 = 40mm stroke, A = A-port, S = adjustable stopper, M9NL = pre-mounted auto-switch (M9N type with L lead wire). This is the longest 12mm bore MXQ L-type in the current catalog range.
The 40mm stroke at 12mm bore provides the most travel in the MXQ12L series. The adjustable stopper (S) enables fine-tuning of the effective stroke distance, so the same actuator can be adjusted to anything less than 40mm during commissioning. The M9NL auto-switch provides position feedback. This combination of extended travel, adjustable stopper, and position sensing creates a versatile slide table for clean room applications requiring flexible positioning over a range of distances.
The MXQ12L-40AS-M9NL is the longest-stroke MXQ12L with stopper and sensing. For shorter strokes, the MXQ12L-10AS and MXQ12L-20A provide 10mm and 20mm options. For larger bore MXQ at similar stroke, the MXQ16 series steps up to 16mm bore. For the MXQ without stopper at 40mm, remove the S suffix. For the MXS slide alternative, the MXS12 provides a different platform. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXQ (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Recirculating Ball
- Bore:
- 12mm
- Stroke:
- 40mm
- Body Type:
- L
- Port:
- A
- Stopper:
- Adjustable (S)
- Auto-Switch:
- M9NL Pre-Mounted
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
