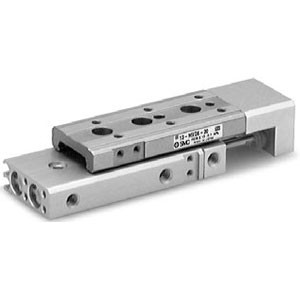

SMC 13-MXQ16-75A | Clean Room Air Slide Table MXQ Series 16mm Bore 75mm Stroke A-Port Configuration
SMC
$685.98
The SMC 13-MXQ16-75A is a clean room specification air slide table from the MXQ series with A-port configuration. Part number decoded: MXQ = MXQ series, 16 = 16mm bore, 75 = 75mm stroke, A = A-port air supply configuration. The 75mm stroke sits between the 40mm and 100mm options, providing a mid-range travel distance.
The A-port configuration specifies the location of the air supply and exhaust ports on the slide body, which determines the tubing routing direction. Selecting the correct port configuration ensures tubes route away from the workpiece and do not interfere with adjacent equipment. At 75mm stroke, the MXQ16-75A handles medium-reach operations including component transfer between closely spaced stations, extended sensor positioning, and moderate-distance indexing.
The MXQ16-75A provides mid-range travel with A-port at 16mm bore. For shorter stroke, the MXQ16-40 provides 40mm. For longer stroke, the MXQ16-100C provides 100mm. For auto-switch sensing, add M9P/M9B suffixes. For the L-type body with longer strokes, the MXQ16L-125A extends to 125mm. For stopper adjustment capability, add S to specify MXQ16-75AS. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXQ (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Recirculating Ball
- Bore:
- 16mm
- Stroke:
- 75mm
- Port:
- A
- Auto-Switch:
- Not Included (Base Unit)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
