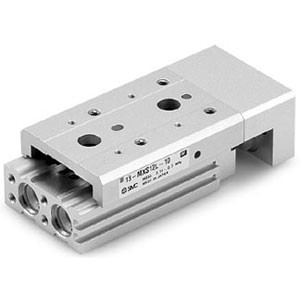

SMC 13-MXQ20-100A-M9PM | Clean Room Air Slide Table MXQ Series 20mm Bore 100mm Stroke A-Port Auto-Switch
SMC
$426.90
The SMC 13-MXQ20-100A-M9PM is a clean room specification air slide table from the MXQ series with 20mm bore, 100mm long stroke, and auto-switch. Part number decoded: MXQ = MXQ series, 20 = 20mm bore, 100 = 100mm stroke, A = A-port, M9PM = pre-mounted auto-switch (M9P NPN with M lead wire). The 20mm bore steps up from the 16mm, providing higher force output.
At 20mm bore, the MXQ generates approximately 19N at 0.6 MPa through a 100mm precision-guided stroke. The increased bore provides significantly more force for moving heavier slide table payloads. The 100mm stroke with A-port and M9P auto-switch creates a complete medium-force, long-travel sensored slide assembly for clean room material handling, sensor scanning, and multi-position indexing.
The MXQ20-100A-M9PM provides sensored long-travel at 20mm bore. For 16mm bore at 100mm stroke, the MXQ16-100C provides a smaller option. For the smallest MXQ at 6mm bore, the MXQ6L provides micro-slide options. For MXQ20 at shorter strokes, options include 30mm and 50mm. For the MXS platform at 20mm bore, the MXS20 provides an alternative slide table design. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXQ (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Recirculating Ball
- Bore:
- 20mm
- Stroke:
- 100mm
- Port:
- A
- Auto-Switch:
- M9PM Pre-Mounted (NPN)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
