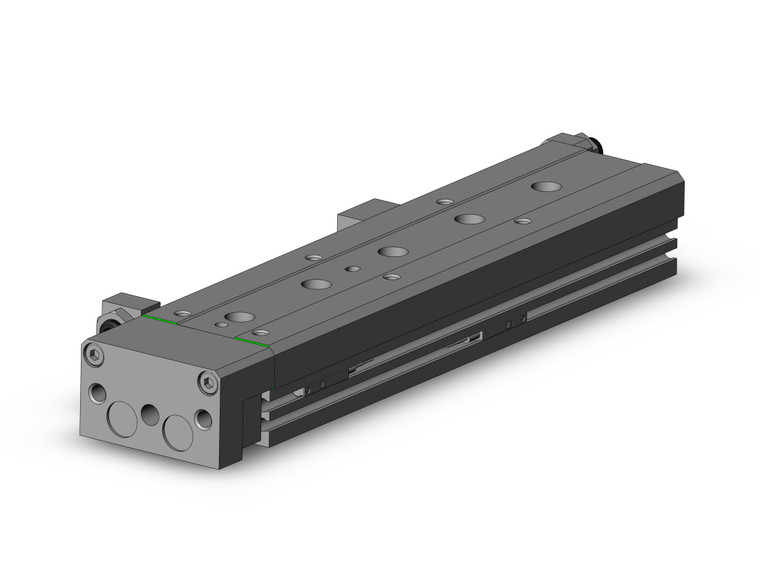

SMC 13-MXS12-100A-M9BSAPC 13-MXS Series Clean Series Air Slide Table
SMC
$674.50
The SMC 13-MXS12-100A-M9BSAPC 13-MXS Series Clean Series Air Slide Table is designed for precision and efficiency. This innovative air slide table integrates seamlessly with a worktable, offering a compact and space-saving solution for your workspace. Its standout feature is the smooth, precise movement achieved through the use of a cross roller guide, ensuring there is no looseness or play during operation. Ideal for applications requiring high accuracy and reliability, this air slide table is a perfect choice for enhancing productivity in clean environments.
- Clean Series:
- Vacuum Suction Type (Special Treatment On Guide)
- Bore Size:
- Bore Size 12 mm
- Port Thread Type:
- M-thread( 6 To 16),Rc( 20, 25)
- Symmetric:
- Standard Type
- Cylinder Stroke:
- Standard Stroke 100 mm
- Adjuster Option:
- Both Ends Rubber Stopper
- Functional Option:
- Standard Type
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 2-wire, In-line, Lead Wire :0.5m, Apply Voltage :DC24V(DC10~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
