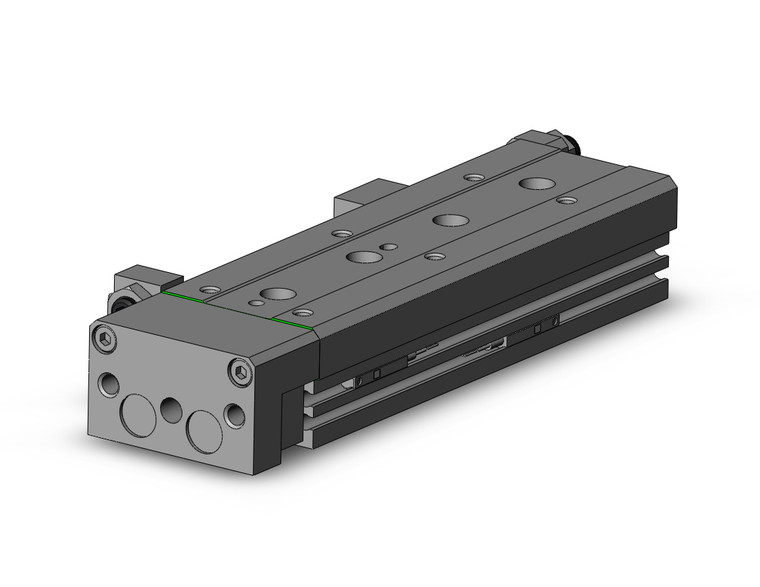

SMC 13-MXS12-75A-M9PSAPC 13-MXS Series Clean Series Air Slide Table
SMC
$614.85
The SMC 13-MXS12-75A-M9PSAPC 13-MXS Series Clean Series Air Slide Table is designed for precision and efficiency. This air slide table integrates seamlessly with a worktable, offering a compact and space-saving solution for your workspace. Its standout feature is the smooth, precise movement it provides, thanks to the incorporation of a cross roller guide. This ensures there is no looseness, allowing for accurate and reliable performance in various applications. Ideal for environments where cleanliness and precision are paramount, this air slide table is a testament to advanced engineering and thoughtful design.
- Clean Series:
- Vacuum Suction Type (Special Treatment On Guide)
- Bore Size:
- Bore Size 12 mm
- Port Thread Type:
- M-thread( 6 To 16),Rc( 20, 25)
- Symmetric:
- Standard Type
- Cylinder Stroke:
- Standard Stroke 75 mm
- Adjuster Option:
- Both Ends Rubber Stopper
- Functional Option:
- Standard Type
- Auto Switch:
- Solid State Auto Switch, With Pre-wired Connector M8-3 pin, With Indicator Light, 3-wire (PNP), In-line, Lead Wire :0.5m, Apply Voltage :DC5V,12V,24V(DC4.5~28V)
- Number Of Auto Switches:
- 2 pcs. Or None
- Made To Order:
- Standard
