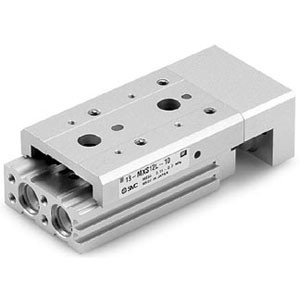

SMC 13-MXS12L-100A-M9NZ | Clean Room Air Slide Table MXS Series 12mm Bore 100mm Stroke L-Type A-Port M9NZ Auto-Switch
SMC
$340.45
The SMC 13-MXS12L-100A-M9NZ is a clean room specification air slide table from the MXS series, identical to the MXS12L-100A-M9NL except for the auto-switch variant. Part number decoded: MXS = MXS series, 12 = 12mm bore, L = L-type body, 100 = 100mm stroke, A = A-port, M9NZ = pre-mounted auto-switch (M9N with Z clean room specification mounting).
The difference between M9NL and M9NZ is the switch mounting and connector specification. The M9NZ variant uses the Z-groove mounting with clean room optimized construction, while the M9NL uses L-type lead wire termination. Both provide the same M9N switching output for PLC position detection. Selecting between the two depends on the equipment's wiring standard and connector preference. All other specifications bore, stroke, guide mechanism, and force output are identical between the M9NL and M9NZ variants.
The MXS12L-100A-M9NZ is the Z-mount auto-switch variant of the MXS12L-100A. For L-lead wire version, the MXS12L-100A-M9NL provides the alternative. For the base unit without switch, remove the M9NZ suffix. For complete pre-wired assembly, specify the M9PSAPC or M9BSAPC suffix instead. For shorter strokes with Z-mount switches, the MXS12L series offers multiple stroke options. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 12mm
- Stroke:
- 100mm
- Body Type:
- L
- Port:
- A
- Auto-Switch:
- M9NZ Pre-Mounted (Z-Mount)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
