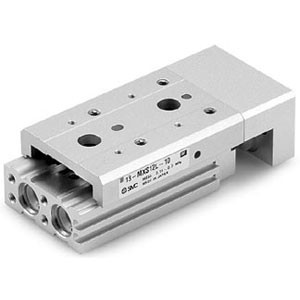

SMC 13-MXS12L-30AT-A93 | Clean Room Air Slide Table MXS Series 12mm Bore 30mm Stroke L-Type A-Port T-Stopper A93 Bracket
SMC
$596.70
The SMC 13-MXS12L-30AT-A93 is a clean room specification air slide table from the MXS series with T-type stopper and A93 auto-switch bracket. Part number decoded: MXS = MXS series, 12 = 12mm bore, L = L-type body, 30 = 30mm stroke, A = A-port, T = T-type fine-thread adjustable stopper, A93 = auto-switch mounting bracket.
The T-type stopper provides finer adjustment resolution than the standard S-type stopper, enabling more precise stroke calibration. The A93 bracket provides a mounting point for D-series auto-switches, adding position sensing capability. This combination of fine-adjustable stroke and position feedback is ideal for clean room applications where the exact travel distance must be precisely dialed in and confirmed by the PLC during each cycle.
The MXS12L-30AT-A93 provides the T-stopper and switch bracket at 30mm stroke. For shorter stroke with T-stopper, the MXS12L-10AS provides 10mm (with S-type stopper). For longer strokes, the MXS12L-50A provides 50mm. For the complete pre-wired auto-switch assembly instead of bracket, specify M9PSAPC suffix. For the MXQ comparison, the MXQ12L-10AS provides the recirculating ball guide alternative. Auto-switches sold separately. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 12mm
- Stroke:
- 30mm
- Body Type:
- L
- Port:
- A
- Stopper:
- T-Type Fine Adjustable
- Auto-Switch:
- A93 Bracket
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
