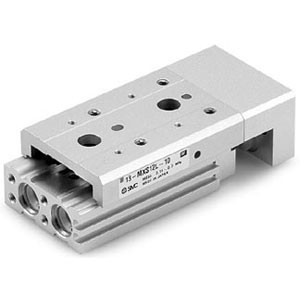

SMC 13-MXS6L-10-A93S | Clean Room Air Slide Table MXS Series 6mm Bore 10mm Stroke L-Type A93S Bracket
SMC
$389.00
The SMC 13-MXS6L-10-A93S is a clean room specification air slide table from the MXS series with 6mm bore, L-type body, and A93S switch bracket. Part number decoded: MXS = MXS series, 6 = 6mm bore, L = L-type body, 10 = 10mm stroke, A93S = auto-switch bracket with S specification. The L-type body provides a different mounting interface from the standard body at this smallest bore size.
The L-type body and A93S bracket combination provides a specific mounting and sensing configuration for the MXS6 micro-slide. The 10mm stroke provides short precision travel. This is one of the most compact guided slide table assemblies available, suited for tight-space micro-positioning applications in semiconductor, photonics, and medical device clean room equipment.
The MXS6L-10-A93S provides the L-type micro-slide with A93S bracket. For the standard body at 6mm bore, the MXS6-10AT provides the non-L option. For L-type with pre-mounted switches, the MXS6L-10AS-M9PWSDPC provides complete sensing. For longer L-type strokes, the MXS6L-20A provides 20mm. Auto-switches mount on A93S bracket (sold separately). Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 6mm
- Stroke:
- 10mm
- Body Type:
- L
- Auto-Switch:
- A93S Bracket
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
