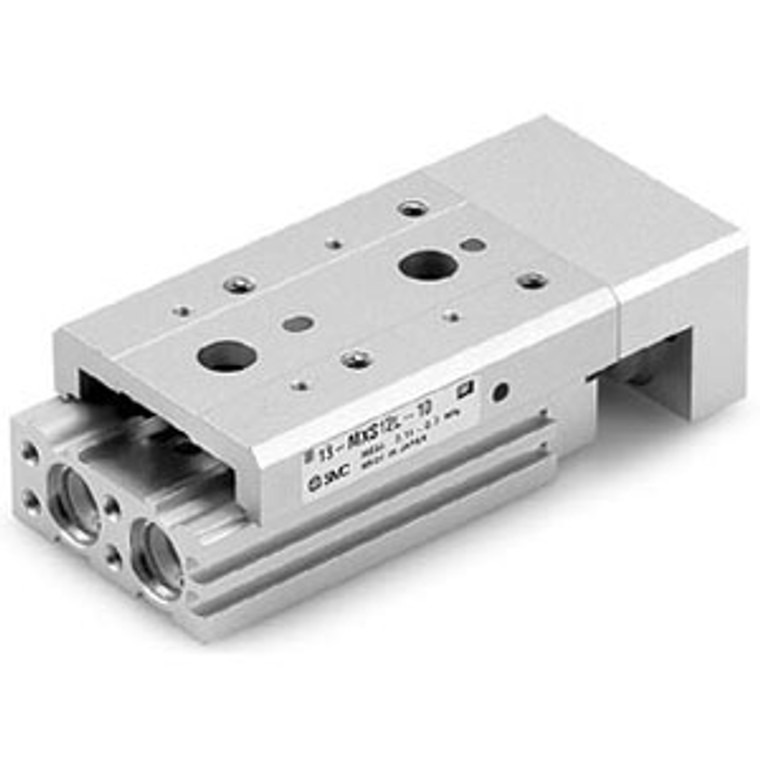

SMC 13-MXS8-75AT-M9PSAPC | Clean Room Air Slide Table MXS Series 8mm Bore 75mm Stroke T-Stopper Complete NPN Assembly
SMC
$318.55
The SMC 13-MXS8-75AT-M9PSAPC is a clean room specification air slide table from the MXS series with the most comprehensive feature set at 8mm bore and 75mm stroke. Part number decoded: MXS = MXS series, 8 = 8mm bore, 75 = 75mm stroke, A = A-port, T = T-type fine-thread stopper, M9PSAPC = complete NPN auto-switch assembly.
This configuration combines long stroke (75mm), fine-thread adjustable stopper (T), and complete plug-and-play NPN auto-switch assembly (M9PSAPC) the premium MXS8 package. The T-stopper enables precise stroke calibration throughout the 75mm range, while the complete switch assembly provides factory-installed, pre-wired position sensing. This eliminates all on-site switch work while providing maximum travel and adjustment capability.
The MXS8-75AT-M9PSAPC is the premium long-stroke MXS8 configuration. For the bracket-only version at 75mm, the MXS8-75-A93L provides a lower-cost option. For shorter stroke premium, the MXS8-50A-M9PSAPC provides 50mm with complete assembly. For the L-type body at 8mm, the MXS8L series provides alternative mounting. For 12mm bore with similar features, the MXS12 series steps up force. Clean series (13-) fluorine grease. RoHS compliant.
- Series:
- 13-MXS (Clean Room)
- Actuator Type:
- Air Slide Table
- Guide:
- Precision Dual Rod Linear Bushing
- Bore:
- 8mm
- Stroke:
- 75mm
- Port:
- A
- Stopper:
- T-Type Fine Adjustable
- Auto-Switch:
- M9PSAPC Complete Assembly (NPN)
- Clean Room Grade:
- 13-
- Certifications:
- RoHS
